Product Details:
Payment & Shipping Terms:
|
| Cabinet Dimension: | 500*1000mm | Module Size: | 250*250mm |
|---|---|---|---|
| Material: | Die-cast Aluminum | LED Configuration: | 1R1G1B SMD2020 |
| Display Function: | Advertising | Usage: | Indoor Stage & Rental |
| Radian Adjustment: | Max 15degree | Warranty: | 2 Years |
| Highlight: | curved wall display,curved led screen |
||
Indoor 3.9 rental stage curved led display 500 X 1000 mm Cabinet High cost-effective
Main Features
1.Quick assemble & dismantle
Fast lock design make it very convient for your rental event
2.Slim and lightweight
Only 80mm thickness and 13kg for the 500*1000mm cabinet
3. High Definition
Pixel pitch 3.91mm adopted the pure black leds.

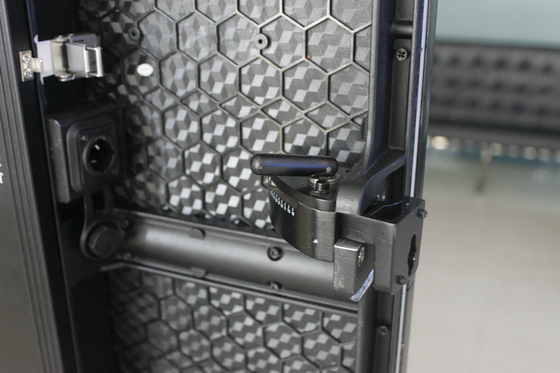

4.Radian adustment lock design
Offer you more choices,the degree from -15degree to +15degree,that means you can make the led screen curved or square.
5.Save more money equal 500*500mm cabinet
500*500mm use 1 receiving card,while the 500*1000mm also use one receiving card via the hub board.

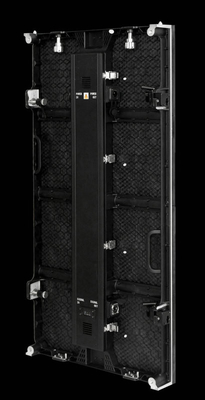

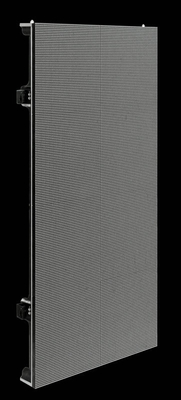

Product Detailed image
Specifications
Cabinet Parameter
| Cabinet Size | 500*1000mm |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight | 13kg |
| Cabinet Resolution | 128*256dots |
| Cabinet Protection | IP3X |
Module Parameter
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R1G1B full color |
| LED type | SMD2020 |
| Module size | 250*250mm |
| Module resolution | 64*64dots |
Screen Parameter
| Pixel Pitch | 3.91mm |
| Driving Mode | 1/16 |
| Refresh Rate | >2840Hz |
| Brightness | >1200nit |
| Power Consumption | Avg:600W/Panel |
| Grayscale | 65536level |
| Viewing Angle(H/V) | 140º/140º |
| Life span | 100,000 hours at 50% brightness |
| IP Rating | IP3X |
| Warranty | 2 years |

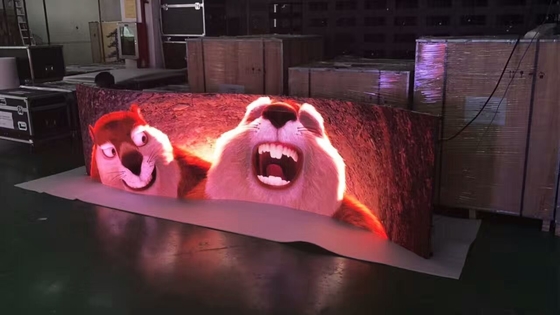

Lighting test in factory
No matter outer arc or inner outer,it can meet your demand.
