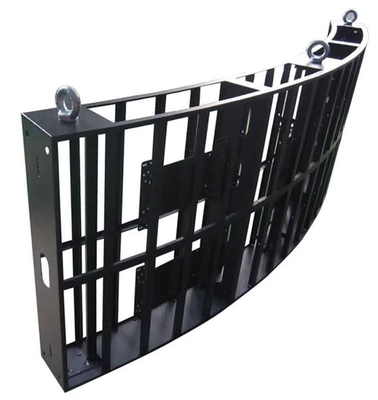

Outdoor P10 Led Curved Screen , Waterproof Flexible Led Display Commercial Use
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Module Size: | 160*160mm | Cabinet Dimension: | 960*960 |
|---|---|---|---|
| LED Tube Chip: | Full Color | LED Type: | 1R1G1B DIP346 |
| Viewing Distance: | 10-120m | Usage: | Outdoor |
| IP Rating: | IP65 | Warranty: | 2 Years |
| High Light: | curved wall display,curved led screen |
||
Outdoor P10 Led Curved Screen , Waterproof Flexible Led Display For Commerce
Competitive Advantage
1. 24/7 Online support service
2. Free onsite maintenance
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
Specifications
1. Outdoor LED Display Technical Parameter
| Model No. | NS-OR-DD-P10 |
| Pixel Pitch | 10mm |
| Module Size | 160mm ×160mm |
| Module Resolution(Pixel) | 16dots ×16dots |
| Pixel Density | 10,000dots/㎡ |
| LED Type | DIP346 |
| Pixel Configuration | 1R1G1B |
| Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
| Drive Mode | 1/4 Constant current |
| Cabinet Size | 960*960mm |
| Cabinet Resolution | 96dots ×96dots |
| Brightness | ≥6,000 cd/㎡ |
| Contrast | ≥ 4000:1 |
| Viewing Angle | 110°(Horizontal )/45°(Vertical ) |
| Best Viewing Distance | 10-120M |
| Grey Scale | 10bits/1024levels |
| Color Capability | 16,777,216 |
| Color Temperature | 5000-9300K |
| Maximum Power Consumption | 1000W/㎡ |
| Average Power Consumption | 350W/㎡ |
| Working Voltage | AC 220V/110V s±15% 50-60 HZ |
| Frame Frequency | 60-85 HZ |
| Refresh Frequency | 240 - 1000HZ |
| Brightness Correction | Pixel, Module, Cabinet Correction |
| Operating Temperature | Static:-40°C ~+85°C Working:-20~+65°C |
| Operating Humidity | 10-90% RH |
| LED Lifespan | 100,000 hours |
| MTBF | ≥50,000 hours |
| Computer Operation System | Win 98/ Win XP/ Win 2000 |
| Video Signal Input | RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
| Video Signal Output | RF, S-Video, GB, RGBHV, YUV, YC etc. |
| Graphics Card | DVI Graphics Card |
| Control Distance | UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
| Control System | LED studio 10.0 |
| Software | LINSN / Nova/ DB-STAR |
| Waterproof Level | IP65 |
| Installation | Wall mount, hung and stand structure |
| Out of Control Rate | 0.01 % |
2. Indoor LED Display Module
| Module Size (W*H) | 160mm *160mm | Pixel Configuration | 1R1G1B |
| Pixel Pitch | 10mm | Resolution (W*H) | 16dots *16dots |
| Pixel Density | 10,000 dots/㎡ | LED Type | DIP346 |
3. Indoor LED Display Cabinet
| Cabinet Size (W*H) | 960*960mm | Module Qty | 4pcs |
| Cabinet Resolution (W*H) | 96 dots *96dots | Cabinet Pixel | 10,000 |
| Average Power Consumption | 350w/㎡ | Max Consumption | 1000W/㎡ |
Applications
Commercial advertising, mobile media, night club, entertainment events, business establishments such as banks, stock exchange centers, bus station, schools,
telecommunications, stadiums, studio,shopping malls, railways, airports, etc

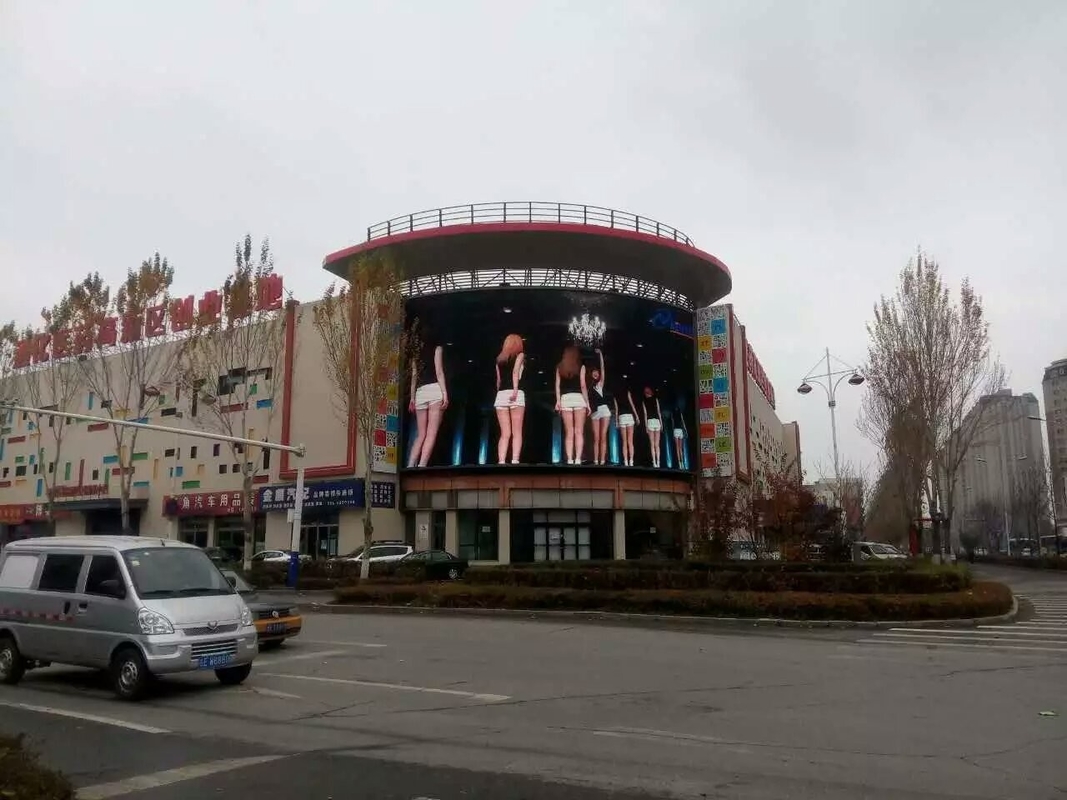

Project Reference
