Waterproof IP65 P20 Curved LED Display Flexible aluminum curtain

small.img.alt small.img.alt

Large Image :  Waterproof IP65 P20 Curved LED Display Flexible aluminum curtain Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: NS-OR-DD-P20
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
High Light:

curved led screen


led curved display


Waterproof IP65 P20 Curved LED Display , Flexible aluminum curtain led screen



Quick Detail:


1. Perfect quality and stability, 24/7 running

2. Curved Design and Good Appearance

3. ≤1mm surface level up, smooth video

4. Front or Rear Access Service

5. Long lifespan up to 100,000 hours

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

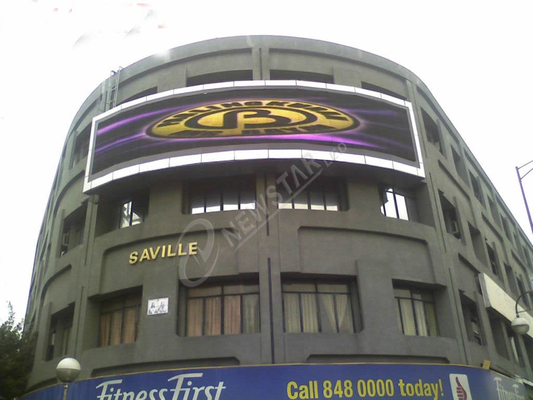

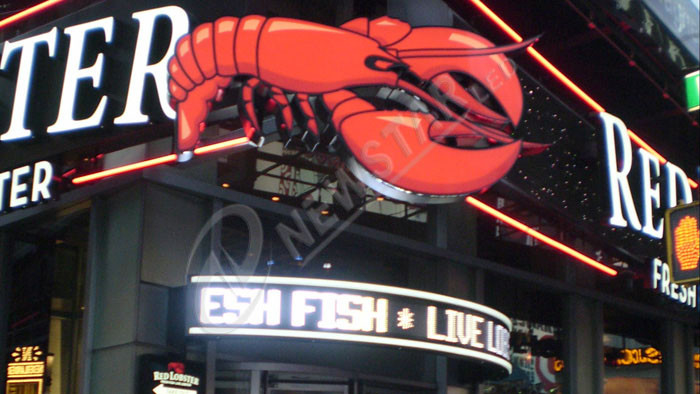

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can

be shaped into column to wrap pillars for animation decoration.


2. Easy to maintain, high resolution, good contrast ratio,lightweight, easy to install. Widely used as the

information billboard in Airport, Railway station, and big shopping mall, concert and etc.


3. The brightness of indoor LED signs can be adjustable for different environment.


4. We make best design with high cost- efficiency due to different demands and we can offer OEM service

as well.





Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.





1. Outdoor LED Display Technical Parameter

Model  No.


Pixel Pitch


Module Size

320mm ×160mm

Module Resolution(dots)


Panel Size

1280mm ×960mm

Panel Resolution(dots)

64 ×48

Pixel Configuration(RGB)


Pixel Density(dots/m2)



≥ 6,500

Best Viewing Distance(m)


Avg. Power Consumption(W/m2)


Drive  Mode

Static Constant current


R  620-625  G 520-525 B 470-475

Viewing    Angle


Operating   Temperature


Video Frame Rate(Hz)

≥ 60HZ

Display  Refresh Rate(Hz)

≥ 300HZ

Grey  Level(colors)


Life Span

≥100,000 hours

Working Voltage

220V±15% OR 110V±15%

Video Signal Input


Control System



2. Outdoor LED Display Module

Module Size (W*H)

320mm *160mm

Pixel Configuration


Pixel Pitch


     Resolution (W*H)

16 dots *8 dots

Pixel Density

2,500 dots/㎡

LED Type

3mm Oval Lamp


3. Outdoor LED Display Cabinet

Cabinet Size (W*H)

1280mm *960mm

Module Qty


  Cabinet Resolution (W*H)

64dots *48dots

Cabinet Pixel


Average Power Consumption


Cabinet material



4. Methods for Quality Assurance

a. Aging


b. Vibration Testing


5. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case


7. Control System Connection


8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like neutrik flight connector, MBI IC etc.
