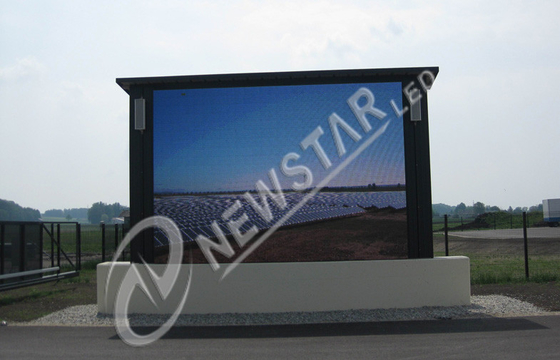

High Resolution Advertising P10 Outdoor Full Color Led Display Rental LED Screen

Large Image : High Resolution Advertising P10 Outdoor Full Color Led Display Rental LED Screen Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Tube Chip Color:	Full Color	Pixel Configuration:	1R1G1B
Pixel Pitch:	10mm	Product Name:	Full Color Outdoor Advertising Led Display/advertising Led Display
Protection Ratings:	IP65(Front Side );IP54(Back Side)	Use:	Outdoor
High Light:	outdoor led advertising signs , outdoor advertising led screen

High Resolution Advertising P10 Outdoor Full Color Led Display Rental LED Screen

Quick Detail:

1. Waterproof Level: IP54 (Back Side), IP65 (Front Side).

2. High refresh rate: static scan up to 4000Hz/s, 1/4 scan up to 1200Hz /s.

3. Long lifespan> 100,000 hours

4. CE, CCC, RoHS qualified.

5. ≤1mm surface level up, smooth video

6. High brightness. (more than 6000cd per sqm)

High Resolution P10 Outdoor LED Display for Advertising IP65 110°(H)/45°(V)

Description:

1. High Contrast

Newstar outdoor LED screens enable to deliver sharp visual effects to our audience.

2. Seamless Design

It eliminates the gap between the module and cabinet making LED screen much more even.

3. Comprehensive Application

It can be used in different situations for mulit purposes such as lease market, advertisement, stadium,

shopmall etc.

4. High Quality and Reliability

Our many outdoor screen have been fixed around the world for 3-5 years and no product issues called.

5. Uniform performance

Newstar always insists using same batch of high quality lamps to make LED screen. Therefore, the LED

screen looks more uniform. No need to do dot correct.

Applications:

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P10
Pixel Pitch	10mm
Module Size	160mm*160mm
Module Resolution (W*H)	16 dots*16 dots
Pixel Density	10000 dots/ ㎡
LED Type	3mm Oval Lamp
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960×640×150mm
Cabinet Resolution	96dots×64dots
Brightness	≥6000cd/㎡
Contrast	≥2000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	10m-300m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000 W/m2
Average Power Consumption	350 W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40℃~+85℃Working:-20~+65℃
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	LINSN / NOVA / DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(Front Side), IP54 (Back Side
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	160mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	10mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	10000 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm*640mm	Module Qty	24 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	50 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	300w/㎡	Max Consumption	1000 W/m2

4. Methods for Quality Assurance

a. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Long Life Span

2. Good Quality and great Performance

3. High Cost Effective

4. Free maintenance service

5. Front/Rear access Available
