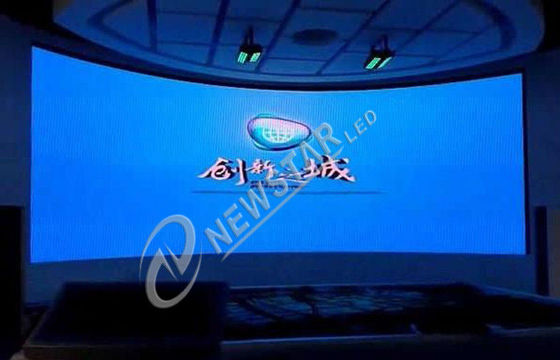

Indoor 5mm Led Curved Display 3 In 1 Smd3528 Vivid Image And Video Effect

small.img.alt small.img.alt

Large Image :  Indoor 5mm Led Curved Display 3 In 1 Smd3528 Vivid Image And Video Effect Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: newstar
Certification: CE,ROHS
Model Number: NS-IR-DS-P5
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: based on quantity
Packaging Details: flight case or wooden box
Delivery Time: 30-35days after payment received
Supply Ability: 2500sqm per month
Detailed Product Description
Module Size: 160*160mm Cabinet Dimension: 800*640*135mm
LED Tube Chip: Full Color LED Type: 1R1G1B SMD3528
Viewing Distance: 4m Usage: Indoor
IP Rating: IP3X Warranty: 2 Years
High Light:

curved wall display


curved led screen

Indoor 5mm Led Curved Display 3 In 1 Smd3528 Vivid Image And Video Effect




1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can

be shaped into column to wrap pillars for animation decoration.


2. Easy to maintain, high resolution, good contrast ratio, easy to install. Widely used as the information

billboard in Airport, Railway station, and big shopping mall, concert and etc.


3. The brightness of indoor LED signs can be adjustable for different environment.


4. We make best design with high cost- efficiency due to different demands and we can offer OEM service

as well.





1. Indoor LED Display Technical Parameter


Model No. NS-IR-DS-P5
Pixel Pitch 5mm
Module Size 160mm ×160mm
Module Resolution(Pixel) 32dots ×32dots
Pixel Density 40,000dots/
LED Type SMD 3528
Pixel Configuration 1R1G1B
Wavelength (R.G.B) R:625±2nm G:525±2nm B:470±2nm
Drive Mode 1/16 Constant current
Cabinet Size 800 ×640 ×135mm
Cabinet Resolution 160dots ×128dots
Brightness ≥1,000 cd/
Contrast ≥ 4000:1
Viewing Angle 140°(Horizontal )/140°(Vertical )
Best Viewing Distance 4m
Grey Scale 10bits/1024levels
Color Capability 16,777,216
Color Temperature 5000-9300K
Maximum Power Consumption 1000W/
Average Power Consumption 400W/
Working Voltage AC 220V/110V s±15% 50-60 HZ
Frame Frequency 60-85 HZ
Refresh Frequency 240 - 1000HZ
Brightness Correction Pixel, Module, Cabinet Correction
Operating Temperature Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity 10-90% RH
LED Lifespan 100,000 hours
MTBF ≥50,000 hours
Computer Operation System Win 98/ Win XP/ Win 2000
Video Signal Input RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card DVI Graphics Card
Control Distance UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System LED studio 10.0
Software LINSN / Nova/ DB-STAR
Waterproof Level IP31
Installation Wall mount, hung and stand structure
Out of Control Rate 0.01 %


2. Indoor LED Display Module


Module Size (W*H) 160mm *160mm Pixel Configuration 1R1G1B
Pixel Pitch 5mm Resolution (W*H) 32dots *32 dots
Pixel Density 40,000 dots/㎡ LED Type SMD 3528


3. Indoor LED Display Cabinet


Cabinet Size (W*H) 800mm *640mm*135mm Module Qty 20 pcs
Cabinet Resolution (W*H) 160 dots *128 dots Cabinet Pixel 20,480
Average Power Consumption 400w/㎡ Max Consumption 1000W/




Commercial advertising, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools,

telecommunications, customs, stadiums, studio,shopping malls, railways, airports, etc

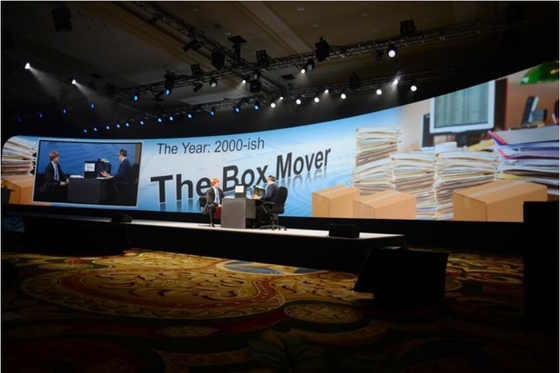

Project Reference

(Car Exhibition)

Indoor 5mm Led Curved Display  3 In 1 Smd3528 Vivid Image And Video Effect 0


Competitive Advantage


1. 24/7 Online support service


2. Free onsite maintenance


3. Solution design


4. Free online training any time


5. High quality raw material used like neutrik flight connector, MBI IC etc.
