Indoor P3 Full Color Curved LED Display SMD2121 IP31 for advertising
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | curved wall display,led curved display |
||
|---|---|---|---|
Indoor P3 Full Color Curved LED Display , SMD2121 LED Screen for advertising
Quick Detail:
1. Front or Rear Access Service
2. Long lifespan up to 100,000 hours
3. ≤1mm surface level up, smooth video
4. Curved Design and Good Appearance
5. Perfect quality and stability, 24/7 running
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:

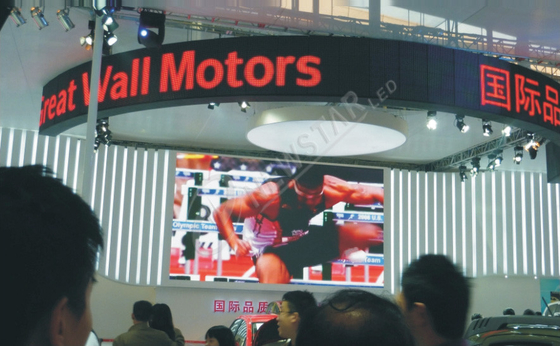

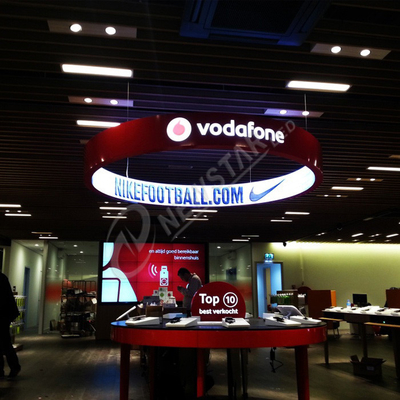

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
2. Easy to maintain, high resolution, good contrast ratio,lightweight, easy to install. Widely used as the
information billboard in Airport, Railway station, and big shopping mall, concert and etc.
3. The brightness of indoor LED signs can be adjustable for different environment.
4. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P3 |
|
Pixel Pitch |
3mm |
|
Module Size |
192mm ×96mm |
|
Module Resolution(Pixel) |
64dots ×32dots |
|
Pixel Density |
111,111dots/㎡ |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/16 Duty Constant Current |
|
Cabinet Size |
768 ×516 ×135mm |
|
Cabinet Resolution |
256dots ×192dots |
|
Brightness |
≥1800cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Minimum Viewing Distance |
2m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16,777,216 |
|
Color Temperature |
5000-9300K |
|
Average Power consumption |
800W/㎡ |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Frequency |
240-1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Indoor LED Display Module
|
Module Size (W*H) |
192mm *96mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
3mm |
Resolution (W*H) |
64dots *32 dots |
|
Pixel Density |
111,111 dots/㎡ |
LED Type |
SMD2121 |
3. Indoor LED Display Cabinet
|
Cabinet Size (W*H) |
768mm ×576mm x135mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
256 dots*192 dots |
Cabinet Pixel |
49,152 |
|
Average Power Consumption |
800w/㎡ |
Cabinet Material |
Aluminum |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
