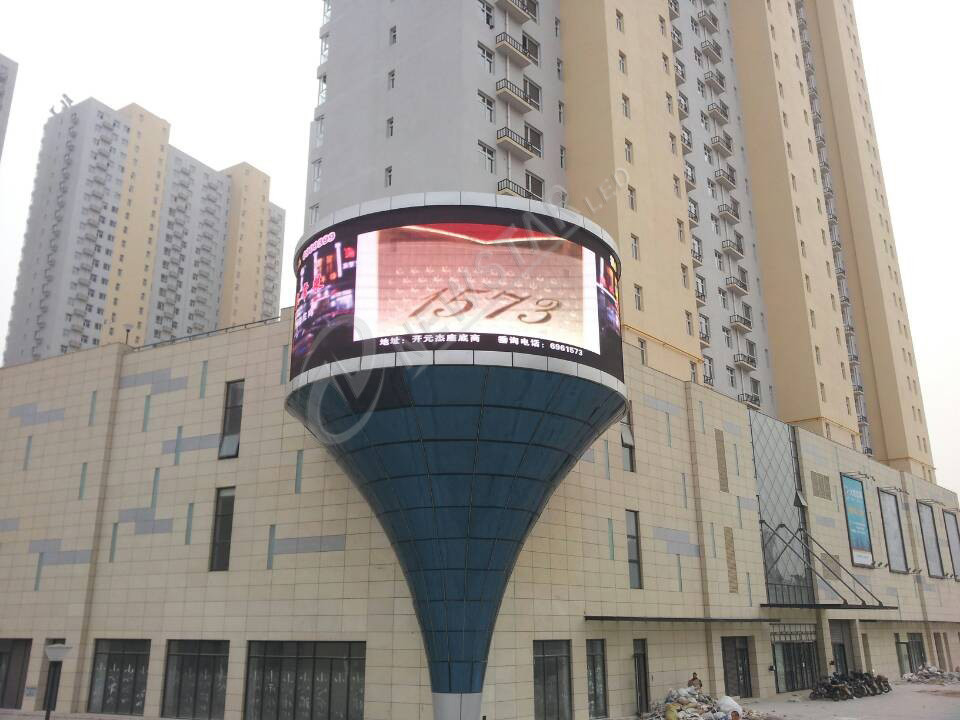

DIP 12mm Round Curved LED Display Advertising , High Brightness
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tube Chip Color: | Full Color | Product Name: | Curved Led Screen/led Curved Display |
|---|---|---|---|
| Pixel Pitch: | 12mm | Pixel Configuration: | 1R1G1B |
| Use: | Outdoor | Protection Ratings: | IP65(Front Side );IP54(Back Side) |
| High Light: | curved wall display,curved led screen |
||
DIP 12mm Round Curved LED Display Advertising , High Brightness
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Curved Design and Good Appearance
3. Perfect quality and stability, 24/7 running
4. Front or Rear Access Service
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:
1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
2. Easy to maintain, high resolution, good contrast ratio, lightweight, easy to install. Widely used as the
information billboard in Airport, Railway station, and big shopping mall, concert and etc.
3. The brightness of indoor LED signs can be adjustable for different environment.
4. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P12 |
|
Pixel Pitch |
12mm |
|
Module Size |
192 mm ×192mm |
|
Module Resolution(Pixel) |
16 dots×16dots |
|
Pixel Density |
6944 dots/m2 |
|
LED Type |
3mm Oval Lamp |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1152×768×150mm |
|
Cabinet Resolution |
96dots×64dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
10~300 m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
≥60HZ |
|
Refresh Frequency |
≥240HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~ +85°C Working:-20°C ~ +60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(front side), IP54 (back side) |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
192mm*192mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
12mm |
Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
6944dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1152mm*768mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
96 dots*64 dots |
Cabinet Pixel |
6144 |
|
Weight |
40 kg/ Cabinet |
Area |
0.6144㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. Front/Rear access Available
2. Reasonable Price, Superior Service.
3. Long Life Span > 100,000 hours
4. Free maintenance service
5. High Quality and High performance
