Slim SMD3535 outdoor Waterproof Led Screen display , Die Casting Aluminum
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 10 Mm | Pixel Density: | 10,000 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3535 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 2，000 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 320mm X 160mm |
| Cabinet Size: | 640mm X 640mm | Brightness: | 5,500 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/4 | Gray Scale: | 16 Bit |
| IP Rating: | IP65 | Lifespan: | 100,000 H |
| Usage: | Outdoor Rental Led Screen | ||
| High Light: | led billboard advertising,digital billboard advertising |
||

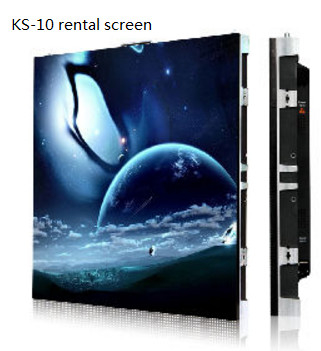

Waterproof SMD3535 outdoor rental led display screen Die Casting Aluminum
1. Features
1.Die-casting aluminum structure cabinets , which can help to achieve high precision ;
2. SMD technology , wide viewing angle (>140°H ; >140°W) and high flatness ;
3. IP65, excellent waterproof function which be support its normally using in heavily rains ;
4. 640*640mm panel and only 13Kg/panel , very thin and lightweight ,suitable for rental events ;
5. Status Indicator shows the working condition of whole LED Screen wall .

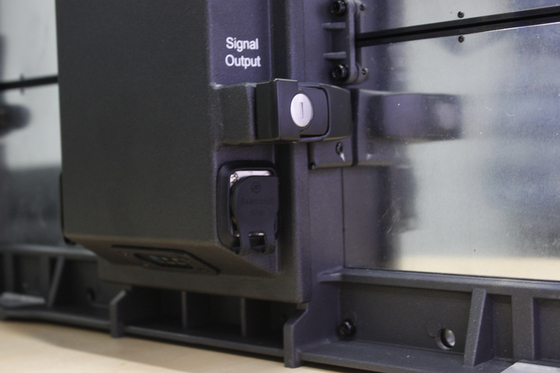

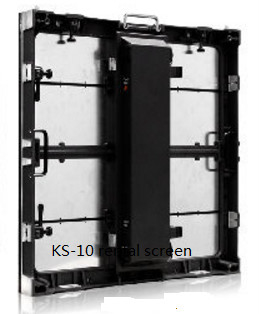

2. Cabinet structure diagram
3. Technical parameters
| Model No. | KS-10 |
| Pixcel pitch | 10 mm |
| Pixel density /sq.m | 10,000 pixels |
| LED configuration | 1R1G1B SMD 3535 |
| Module size | 320 x 160 mm |
| Cabinet size | 640 x 640 mm |
| Panel resolution | 64 x 64 dots |
| Scan way | 1/ 4 |
| Refresh rate | 2,000 Hz |
| Panel weight | 13 kg |
| Brigtness | 5,500 CD / sq.m |
| Max. power consumption | 250 W/Panel |
| Avg. power consumption | 80 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP65 |
| Panel material | Die casting aluminum |
| Working temperature | -20- + 60 ℃ |
| Working humidity | 10-90% RH |
| Driving IC | MBI 5124 |
| Led chip | Epistar |
| Lifetime | 100,000h |
| Certification | CCC, CE,ROHS,ETL |
| Control system | Novastar / Linsn |
| Operating system | Windows / Me / 200 NT/XP |
| Minimum viewing distance | 10m |
| Frame rate | 60 Hz |
4. Packaging by flight cases
5. Application
KS-10 rental led display is widely used for backdrops in outdoor events , such as concerts , live shows , etc..
