1R1G1B DIP P20 Billboard LED Display , full color advertising led screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | digital billboard advertising,outdoor led advertising signs |
||
|---|---|---|---|
1R1G1B DIP Outdoor P20 Billboard LED Display, full color advertising led screen
Quick Detail:
1. Stand pole installation
2. 24 months warranty and lifelong free tech-support
3. Excellent contrast ratio, high resolution/high definition
4. CE&RoHS certificate
5. Waterproof IP65
6. Brightness(cd/m2)≥ 6500
Description:
1. Durable fresh color and High brightness
65536 grey scale and the 281 billions color and more than 1200 HZ refresh rate ensure wonderful video
color presentation
2. Energy Saving
Adopt high-brightness LED with low consumption and 90% efficiency power supply saving 20% power
energy.
3. Stability and reliability
Precise manufacturing process keeps the modules rugged and durable.
Applications:

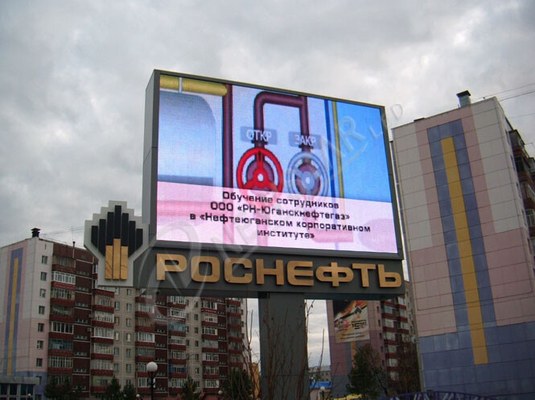

Outdoor full color digital billboards are very popular in LED display advertising field. This type digital
billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,crossroad,
highway,airport etc;
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P20 |
|
Pixel Pitch |
20mm |
|
Module Size |
320mm ×160mm |
|
Module Resolution(dots) |
16 *8 |
|
Panel Size |
1280mm × 960mm |
|
Panel Resolution(dots) |
64 × 48 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(dots/m2) |
2,500 |
|
Brightness(cd/m2) |
≥ 6,500 |
|
Best Viewing Distance(m) |
15-300 |
|
Avg. Power Consumption(W/m2) |
800 |
|
Drive Mode |
Static Constant Current |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
Viewing Angle |
110°(H)/45°(V) |
|
Operating Temperature |
–20~60°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
Lifespan |
≥100,000 hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION |
|
Control System |
LINSN OR DB-STAR |
2. Outdoor LED Display Module
|
Module Size (W*H) |
320mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
20mm |
Resolution (W*H) |
16 dots*8 dots |
|
Pixel Density |
2,500 dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1280mm* 960mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
64dots *48 dots |
Cabinet Pixel |
3,072 |
|
Cabinet Material |
Aluminum |
Area |
0.6144㎡ |
|
Average Power Consumption |
800w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. Long Lifespan > 100,000 hours
2. High quality and high performance
3. Front/Rear access available
4. Reasonable price, superior service.
5. Free maintenance service
