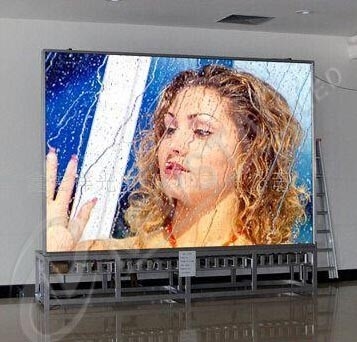

Super Slim SMD 3528 HD LED Display Curtain Led Screen For Stage Show / Airport

small.img.alt small.img.alt small.img.alt

Large Image :  Super Slim SMD 3528 HD LED Display Curtain Led Screen For Stage Show / Airport Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: CS-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
High Light:

led billboard advertising


outdoor led advertising signs

Super Slim SMD 3528 HD LED Display Curtain Led Screen For Stage Show / Airport


Quick Detail:


1. Available models: P4.46,P5.21, P6.25..

2. Brilliant contrast ratio with 4000:1 , high resolution/high definition

3. Light weight and easy to move and install

4. Best uniformity and no mosaic

5. Ultra thin cabinet: thickness is 75mm, weights 7.5Kg

6. Pixel Configration:1R1G1B 3 IN 1





1. Ultra thin cabinet

Each panel is only 500*500mm, thickness is 75mm, weights 7.5Kg.

2. Clear vivid image quality:

High refresh rate 2,000Hz, without any loss of grey level.

3. Easy Installation & Operation:

Full aluminum design with exquisite design, user friendly software for an easier operation

4. Fanless design & good heat dissipation

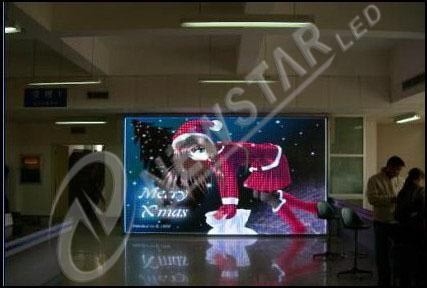

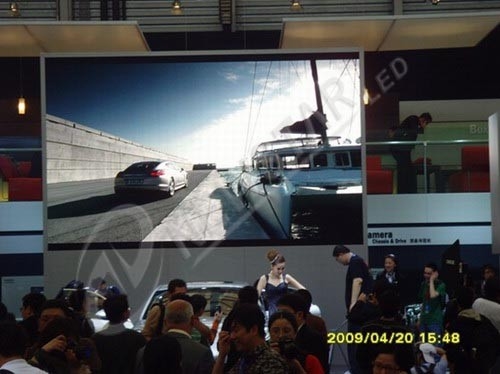

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;





1. Indoor LED Display Technical Parameter



Pixel structure

1R1G1B 3in1

Pixel pitch


Pixel density

36,864 dots/㎡



Module dimension

250mm(W) * 250mm(H)

Module resolution

48 pixel(W) * 48 pixel mm(H)

Cabinet dimensionSuper Slim SMD 3528 HD LED Display

Curtain Led Screen For Stage Show / Airport

500 * 500mm

Cabinet resolution

96 * 96

Cabinet area

0.25 sq.meter

Optimal visual distance


Visual angel

140 degree (H/V)

Max power consumption

≤800w / ㎡

Average power consumption

≤300w / ㎡

Brightness adjustment

Adjust according to the environment

brightness software (0%-100%adjustable)

Gray scale

Point by point 4096 gray grade levels of

each color,16 bits  correction available

Drive mode

1/12 dynamic scan, constant current

Frame frequency


Refresh frequency


Input voltage

AC 90~260 volts

Operation temperature

﹣40℃~ +60℃

Operation humidity


Input signal

S-video, RF, RGB, Yuv, YC, composite…

Control system

DVI card + master control card + receiver card


>5,000 hrs

Lifespan (50% brightness)

100,000 hrs

Malfunction dot rate


Ingress protection rate


Cabinet material



Rental / Permanent installation available



2. Indoor LED Display Module

Dimensions (w x h)


Resolution (w x h)

48 x 48

Pixel pitch


Pixel Density


Pixel Configration

1R1G1B 3 IN 1




3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)


Module Quantity


Physical Resolution (w x h)

96 x 96

Physical Pixels (total)


Weight/Panel (kgs)




Average Power/sqm (watts)


Max Power/sqm(watts)



4. Methods for Quality Assurance


 1. 100% fully test

 2. Condition: 72 hours with 256 grey level


 b.Vibration Testing

 Condition: 3-5 mins up and down in 5mm range


5. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case


7. Control System Connection


8. Competitive Advantage:

1.  2 years’ warranty with free repair service

2.  24/7 Hours online remote support

3.  Solution and PCB design

4.  Free factory training

5.  Onsite installation instruction and regular inspection
