P6.67 large outdoor led display screens for concerts , led advertising board custom
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 6.67 Mm | Pixel Density: | 22,477 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3535 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 2，000 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 320mm X 160mm |
| Cabinet Size: | 640mm X 640mm | Brightness: | 7000 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/6 | Gray Scale: | 16 Bit |
| IP Rating: | IP65 | Lifespan: | 100,000 H |
| Usage: | Outdoor Rental Led Screen | ||
| High Light: | led billboard advertising,digital billboard advertising |
||
P6.67 large outdoor led display screens for concerts , led advertising board custom
1.Features
1. It is an high quality outdoor rental display,with graceful and concise appearence ;
2. <0.1mm tolerance, die-casting aluminum structure ;
3. SMD3535 led lamp, which guarantee a wide viewing angle (>140°H;>140°W) and flatness ;
4. IP65 waterproof level , can be used for all kinds of outdoor environments ;

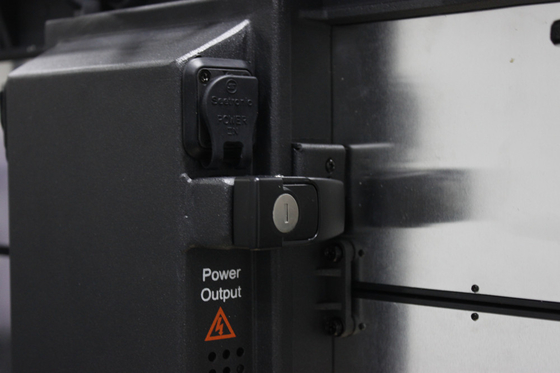

5. Fast dismantle and assembly with fast spring locks ;
6. Brightness> 7,000CD/SQM .

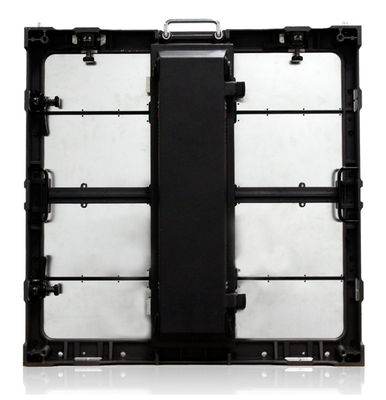

2. Cabinet structure diagram
3. Technical parameters
| Model No. | KS-6.67 |
| Pixcel pitch | 6.67 mm |
| Pixel density /sq.m | 22,477 pixels |
| LED configuration | 1R1G1B SMD 3535 |
| Module size | 320 x 160 mm |
| Cabinet size | 640 x 640 mm |
| Panel resolution | 96 x 96 dots |
| Scan way | 1/ 6 |
| Refresh rate | 2,000 Hz |
| Panel weight | 13 kg |
| Brigtness | 7000 CD / sq.m |
| Max. power consumption | 300 W/Panel |
| Avg. power consumption | 105 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | Novastar/ Linsn |
| Control system | 7,000 cd /sq.m |
| Operating system | IP65/IP54 |
| Panel material | Die casting aluminum |
| Working temperature | -20-60 ℃ |
| Working humidity | 10-90% RH |
| Driving IC | MBI 5124 |
| Led chip | Epistar |
| Lifetime | 10,000h |
| Certification | CCC, CE,ROHS,ETL |
| Control system | Novastar / Linsn |
| Operating system | Windows / Me / 200 NT/XP |
4. Packaging by flight cases

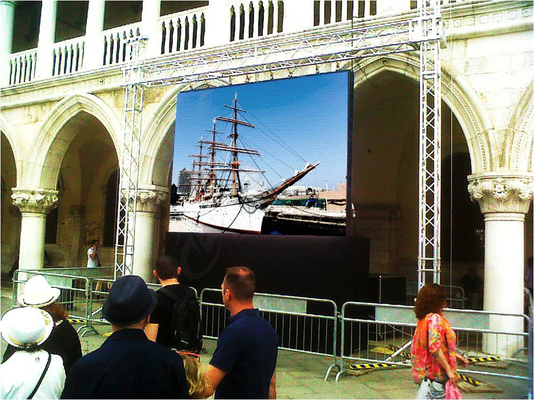

5. Application
Kingkong seires P6.67 rental led display is widely used in outdoor expo events, stage events, weddings, celebration etc.
