Rental LED display LED screen 640x640 mm 13kg outdoor 6.67 mm fast set-up LED Wall

Rental LED display LED screen 640x640 mm 13kg outdoor 6.67 mm fast set-up LED Wall

With the competition of best precision and soldering technology, KingKong series has become the superior product of Newstar for outdoor rental LED panel.

Newstar develop KingKong Series since 2008, by highly gapless, seamless and mask evenness, the video wall face maximum precision small down to 0.05mm, the video output will better than alternatives.

With 640x640mm cabinet, KingKong provided 6.67mm, 8mm and 10mm to give customers best pitch options.

Fastest top and side lock design, the assemble and disassemble will save much more time and labor.

The specification

Connection: Using Seetronic for main power/signal line and cabinets power/signal line

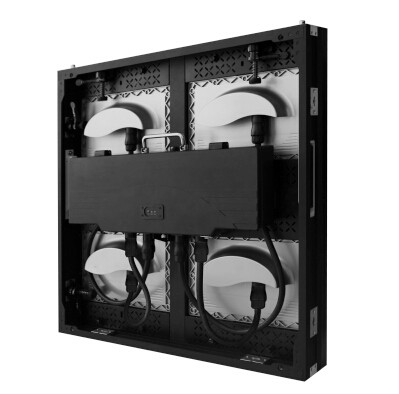

The cabinet was designed to convenient connection, for faster installation. The wiring can reference below drawing:

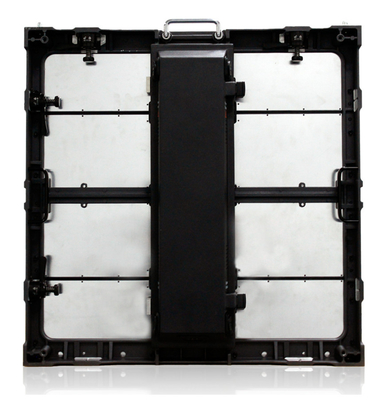

Installation: easier and faster lock design, hanging installation.

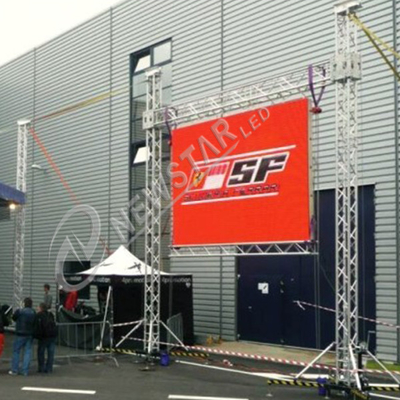

Project reference:  P10, 3.84m X2.88m in Piazza San Marco, Italy

Maintenance: Replace the modules, power supplies and receiving cards from back

Decrease LED Defect Rate: Top soldering technology + AOI inspection

In Newstar, every PCB will be inspected by the AOI machine, instead of no inspection or inspected by eyes. Good soldering technology and strict inspection give LED screens strong stability and decrease the LED defect rate.

Brightness & RGB balance auto-calibration is available after module replacement

The KS outdoor LED wall was designed to IP65 waterproof and high brightness (> 6000 nits)

Synchronous control: User only need to use desktop to control the video wall(sending card connect with PC).

If customer want to use laptop control, or with other device use together, the video processor will be necessary.

The video processor can switch the signal from other device, such as laptop, desktop, camara, DVD, TV...
