P6 lightWeight Waterproof Led Screen / led panel display for Hotel and Square
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | led billboard advertising,digital billboard advertising |
||
|---|---|---|---|
Outdoor SMD P6 Billboard LED Display, led screen for Hotel and Square
Quick Detail:
1.Perfect vivid image for sign or advertising
2.Long lifespan and stable work, waterproof,
3.LED Display Cabinet design for easy install and dismantle.
4.Best quality, best price.
5. High viewing angle: 140°(Horizontal )/140°(Vertical ),
6. Brightness(cd/m2)≥ 6,000
Description:
1. Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric.
2. High viewing angle: 140°(Horizontal )/140°(Vertical ).
3. High Contrast. The Contrast is above 2000:1, so the viewer can have a wonderful visual.
4. Outstanding consistency in color and brightness, no mosaic effects.
Applications:

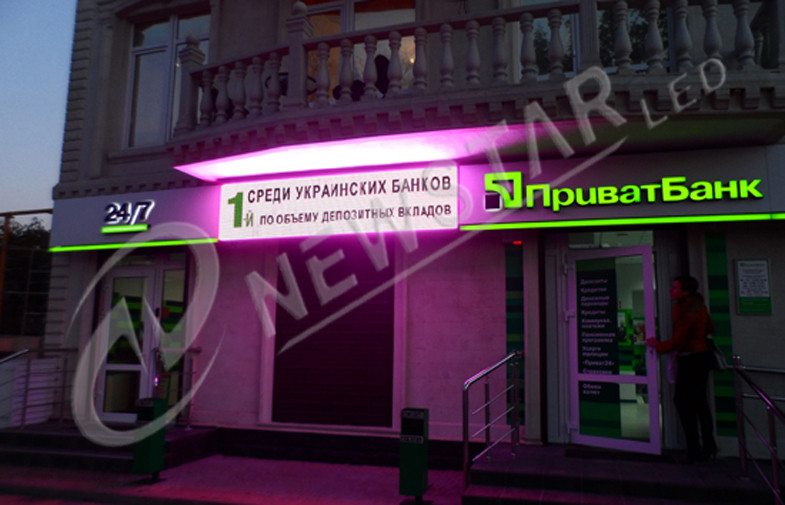

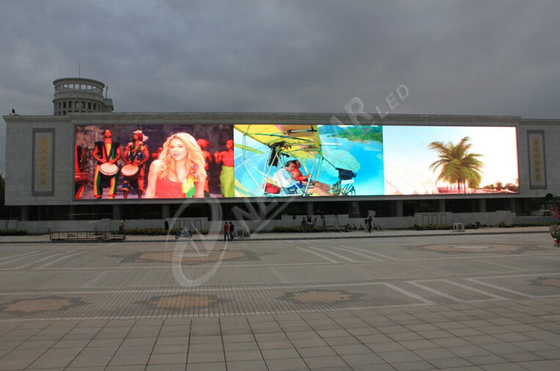

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DS-P6 |
|
Pixel Pitch |
6mm |
|
Module Size |
192mm × 96mm |
|
Module Resolution(dots) |
32*16 |
|
Panel Size |
960mm × 768mm |
|
Panel Resolution(dots) |
160 × 128 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(dots/m2) |
2,7777 |
|
Brightness(cd/m2) |
≥ 6,000 |
|
Best Viewing Distance(m) |
7-300 |
|
Avg. Power Consumption(W/m2) |
1,000 |
|
Drive Mode |
Constant 1/8 |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Temperature |
–20~60°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
Lifespan |
≥100,000 hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION |
|
Control System |
LINSN OR DB-STAR |
2. Outdoor LED Display Module
|
Module Size (W*H) |
192mm * 96mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
6mm |
Resolution (W*H) |
160dots * 128dots |
|
Pixel Density |
2,7777 dots/㎡ |
LED Type |
SMD 3535 |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
960mm * 768mm |
Module Qty |
40 pcs |
|
Cabinet Resolution (W*H) |
160 dots *128 dots |
Cabinet Pixel |
20,480 |
|
Average Power Consumption |
1,000w/㎡ |
Cabinet materail |
Aluminum |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. Long Lifespan > 100,000 hours
2. High quality and high performance
3. Front/Rear access available
4. Reasonable price, superior service.
5. Free maintenance service
