Full Color Outdoor Rental P16 LED Display Signs With High Brightness , 1R1G1B

Large Image : Full Color Outdoor Rental P16 LED Display Signs With High Brightness , 1R1G1B Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P16

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

LED Type:	3mm Oval Lamp	Pixel Configuration:	1R1G1B
Pixel Pitch:	P16mm	Product Name:	Outdoor LED Display Signs
Tube Chip Color:	Full Color	Use:	Outdoor
Brightness:	≥8000cd/m2	Pixel Density:	3906 Dots/㎡
High Light:	led billboard advertising , outdoor led advertising signs

Full Color Outdoor Rental P16 LED Display Signs With High Brightness , 1R1G1B

Quick Detail:

1. High Brightness more than 8000cd/sqm

2. ≤1mm surface level up, smooth video

3. Portable and easy to install and dismantle

4. 2 years warranty.

5. Free onsite installation consulting

6. IP65 Ruggedness, all-weather qualified

Full Color P16 Outdoor Rental LED Display Signs With High Brightness , 1R1G1B 3906dots/m2

Description:

1. High Brightness

More than 8000nits, it delivers enough brightness in outdoor. Even under direct sun light, it performs very

well.

2. Seamless Design

It eliminates the gap between the module and cabinet making LED screen much more even.

3. High Quality and Reliability

Our many outdoor screens have been used by our clients around the world for 3-5 years and no product

issues are called.

4. High definition

High definition and delivers vivid and clear pictures

5. High Contrast Ratio

Newstar outdoor LED screens enable to deliver sharp visual effects to our audience.

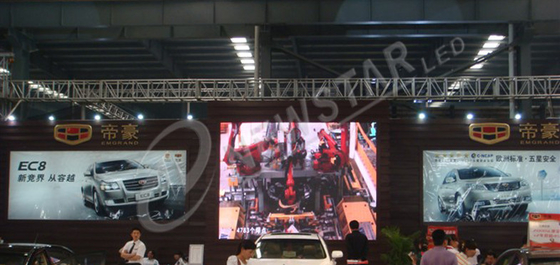

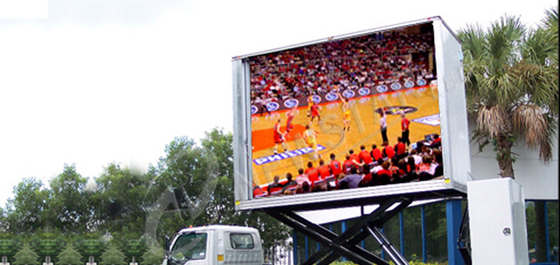

Applications:

Comprehensive application such as outdoor rental, indoor rental, events, advertising etc.

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P16
Pixel Pitch	16mm
Module Size	256mm×256mm
Module Resolution(dots)	16*16
Panel Size	1024mm×768mm
Panel Resolution(dots)	64×48
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	3906
Brightness(cd/m²)	≥ 8000
Best Viewing Distance(m)	15-300
Max. Power Consumption(W/m²)	1000
Drive Mode	Static
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Life Span	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	256mm*256mm	Pixel Configuration	1R1G1B
Pixel Pitch	16mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	3906 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1024mm*768mm	Module Qty	12 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like neutrik flight connector, MBI IC etc.
