Waterproof P12 Rental LED Screen IP65 1R1G1B , Outdoor Advertising LED Display Signs
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | led billboard advertising,digital billboard advertising |
||
|---|---|---|---|
Waterproof P12 Rental LED Screen IP65 1R1G1B , Outdoor Advertising LED Display Signs
Quick Detail:
1. High Brightness more than 6000cd/sqm
2. Rental and events application
3. Modular design, flexible shape for big area
4. 2 years warranty
5. Free onsite installation consulting
6. Perfect quality and stability, 24/7 running
P12 Outdoor Advertising LED Display Signs , IP65 1R1G1B Rental LED Screen 6944dots/㎡
Description:
1. High Brightness
More than 6500nits, it delivers enough brightness in outdoor. Even under direct sun light, it performs very
well.
2. Seamless Design
It eliminates the gap between the module and cabinet making LED screen much more even.
3. High Quality and Reliability
Our many outdoor screens have been used by our clients around the world for 3-5 years and no product
issues are called.
4. High definition
High definition and delivers vivid and clear pictures
5. High Contrast Ratio
Newstar outdoor LED screens enable to deliver sharp visual effects to our audience.

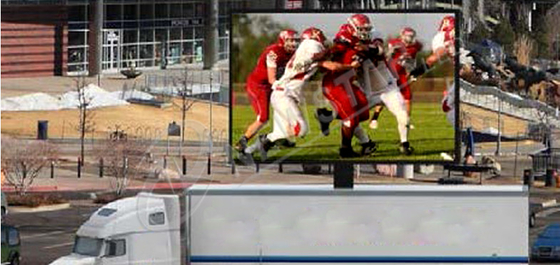

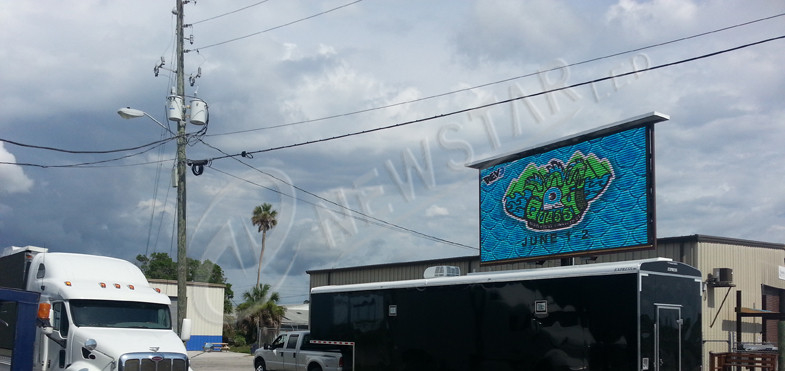

Applications:

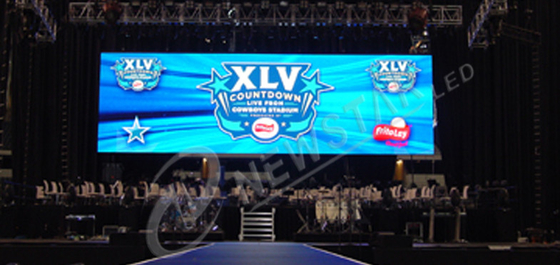

Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,
Hotel, Club & Bars, Festival, etc.
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P12 |
|
Pixel Pitch |
12mm |
|
Module Size |
192 mm ×192mm |
|
Module Resolution(Pixel) |
16 dots×16dots |
|
Pixel Density |
6944 dots/m2 |
|
LED Type |
3mm Oval Lamp |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1152×768×150mm |
|
Cabinet Resolution |
96dots×64dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
10~300 m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
≥60HZ |
|
Refresh Frequency |
≥240HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~ +85°C Working:-20°C ~ +60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(front side), IP54 (back side) |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
192mm*192mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
12mm |
Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
6944dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1152mm*768mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
96 dots*64 dots |
Cabinet Pixel |
6144 |
|
Weight |
40 kg/ Cabinet |
Area |
0.6144㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
