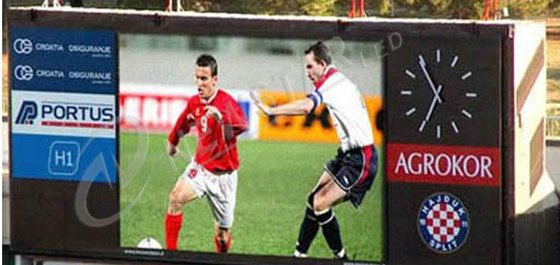

High Brightness SMD 3 in 1 P10 Outdoor Full Color Led Display Rental For Soccer Stadium
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | SMD | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 10mm | Tube Chip Color: | Full Color |
| Use: | Outdoor | ||
| High Light: | led billboard advertising,outdoor led advertising signs |
||
High Brightness SMD 3 in 1 P10 Outdoor Full Color Led Display Rental For Soccer Stadium
Quick Detail:
1. 2 years warranty. Lifelong free tech-support
2. Front accessible maintenance
3. Excellent contrast ratio, high definition
4. High brightness and perfect uniformity
5. Waterproof IP65
6. P8, P10, P12, P16, P20 Available
7. CE and RoHS approved
SMD 3 in 1 Portable Outdoor Full Color LED Display Advertising For Stage Rental P10mm
Description:
1. High Brightness
More than 6000nits, it delivers enough brightness in outdoor. Even under direct sun light, it performs very
well.
2. More even and bigger view angle
Made by SMD LEDs, the panel looks more even and soft. View angle for either vertical or horizontal is
140°c
3. High Quality and Reliability
Our many LED screens have been used by our clients for many years around the world and rarely after
service is called.
4. High definition
High definition and delivers vivid and clear pictures
5. High Contrast Ratio
Newstar outdoor LED screens enable to deliver sharp visual effects to our audience.
Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,
Hotel, Club & Bars, Festival, etc.
Specifications:
1. SMD Outdoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
320mm×160 mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
10000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×960×135mm |
|
Cabinet Resolution |
96dots×96dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
10m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP65 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
320mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10mm |
Resolution (W*H) |
32 dots*16 dots |
|
Pixel Density |
10000 dots/㎡ |
LED Type |
SMD 3 in 1 |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
960mm*960mm |
Module Qty |
18 pcs |
|
Cabinet Resolution (W*H) |
96 dots*96 dots |
Cabinet Pixel |
9216 |
|
Weight |
40 kg/ Cabinet |
Area |
0.9216㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Waterproof test
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
