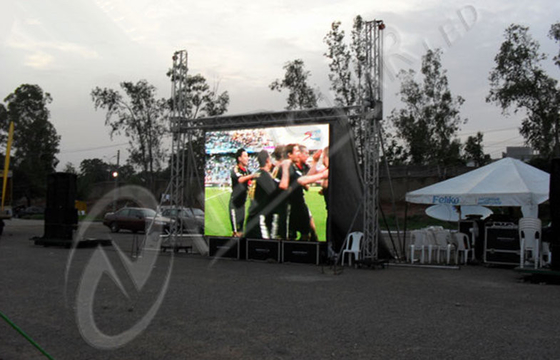

High Resolution Outdoor Video Wall Led Display P16 Stage Led Screen Rental

Large Image : High Resolution Outdoor Video Wall Led Display P16 Stage Led Screen Rental Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P16

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	20-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

LED Type:	3mm Oval Lamp	Pixel Configuration:	1R1G1B
Pixel Pitch:	16mm	Product Name:	Led Display Boards/led Display Signs
Tube Chip Color:	Full Color	Use:	Outdoor
High Light:	led billboard advertising , outdoor led advertising signs

High Resolution Outdoor Video Wall Led Display P16 Stage Led Screen Rental

Quick Detail:

Outdoor rental LED

1. Perfect quality and stability, 24/7 running

2. Best consistency with signal input, vivid color

3. IP65 Ruggedness, all-weather qualified

4. Centralized control management for multi-displays

5.7000nit above brightness, automatic brightness adjustment

6. Long lifespan>100,000 hours.

High Resolution P16 Video Rental LED Display For Outdoor Commercial Advertising

Description:

1. Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three

display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

2. 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast,

saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

3. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other

information with your PC does synchronously.

4. Line-Double technology is adopted for the picture adjustment.

5. Can be connected with PC and the web net and show the content, and also can be controlled remotely

via VPM+ADSL.

6. Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

Applications:

Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,

Hotel, Club & Bars, Festival, etc.

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P16
Pixel Pitch	16mm
Module Size	256mm×256mm
Module Resolution(dots)	16*16
Panel Size	1024mm×768mm
Panel Resolution(dots)	64×48
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	3906
Brightness(cd/m²)	≥ 8000
Best Viewing Distance(m)	15-300
Max. Power Consumption(W/m²)	1000
Drive Mode	Static
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Life Span	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	256mm*256mm	Pixel Configuration	1R1G1B
Pixel Pitch	16mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	3906 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1024mm*768mm	Module Qty	12 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Long Life Span > 100,000 hours

2. High Quality and High performance

3. Front/Rear access Available

4. Reasonable Price, Superior Service.

5. Free maintenance service
