P10 Outdoor Rental LED Display for Advertising / Stage Background Led Screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Configuration: | 1R1G1B | Pixel Pitch: | 10mm |
|---|---|---|---|
| Product Name: | Led Display Boards/led Display Signs | Protection Ratings: | IP65 |
| Tube Chip Color: | Full Color | Use: | Outdoor |
| High Light: | led billboard advertising,outdoor led advertising signs |
||
P10 Outdoor Rental LED Display for Advertising / Stage Background Led Screen
Quick Detail:
1. 24 months warranty. And lifelong free tech-support
2. CE and RoHS approval
3. Front accessible maintenance
4. Excellent contrast ratio, high definition
5. High brightness and perfect uniformity
6. Waterproof IP65
7. Available models: P8, P10, P12, P16, P20 ect.
P10 Outdoor LED Display for Advertising , IP65 SMD 3 In 1 Rental LED Display 1R1G1B
Description:
1. High Contrast ratio: 4000:1
This is a very high level to ensure a vivid image of our LED display screen system.
2. First-class LED chip:
Supplied by high strictly selected SMD3535 LED
3. Clear vivid image quality:
Perfect color blending and comfortable visual effect
4. Easy Installation & operation:
Slim and light LED panel, user friendly software for an easy interface to operate the LED system
5. Easy maintenance:
Front and rear cabinet access maintenance
Applications:

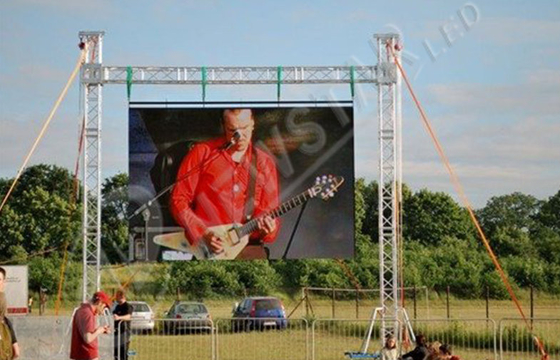

Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,
Hotel, Club & Bars, Festival, etc.
Specifications:
1. SMD Outdoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
320mm×160 mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
10000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×960×135mm |
|
Cabinet Resolution |
96dots×96dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
10m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP65 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
320mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10mm |
Resolution (W*H) |
32 dots*16 dots |
|
Pixel Density |
10000 dots/㎡ |
LED Type |
SMD 3 in 1 |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
960mm*960mm |
Module Qty |
18 pcs |
|
Cabinet Resolution (W*H) |
96 dots*96 dots |
Cabinet Pixel |
9216 |
|
Weight |
40 kg/ Cabinet |
Area |
0.9216㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Vibration test
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. Reasonable Price, Superior Service.
2. Long Life Span > 100,000 hours
3. Free maintenance service
4. Front/Rear access Available
5. High Quality and High performance
