Portable P10 Outdoor Rental Led Display Billboard With Viewing Angle V45 / H110
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | 3mm Oval Lamp | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 10mm | Product Name: | Led Display Boards/led Display Signs |
| Tube Chip Color: | Full Color | Use: | Outdoor |
| High Light: | digital billboard advertising,outdoor led advertising signs |
||
Portable P10 Outdoor Rental Led Display Billboard With Viewing Angle V45 / H110
Quick Detail:
1. Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line
2. Modular design, flexible shape for big area
3. IP65 Ruggedness, all-weather qualified
4. 2 years warranty, and 24/7 hours onsite remote support.
5. ≤1mm surface level up, smooth video
6. Long lifespan> 100,000 hours
Portable P10 Outdoor Rental LED Display Billboard For Club , Bars 16*16 V45 / H110
Description:
1. Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle
at this range, no picture change, no color excursion;
2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;
3. To pictures and character, have clear, exquisite and real display effect;
4. High intensity and can be adjusted, so can meet the request of the customers according the application
environment;
5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

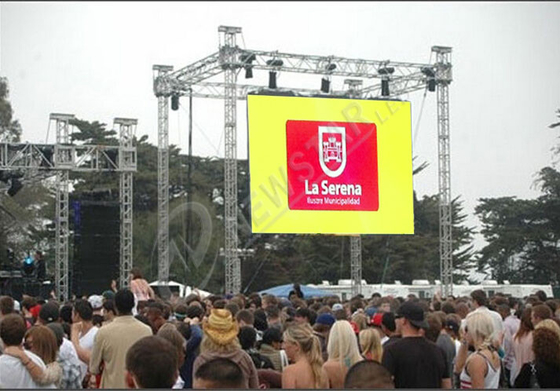

Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,
Hotel, Club & Bars, Festival, etc.
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
160mm*160mm |
|
Module Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
10000 dots/ ㎡ |
|
LED Type |
3mm Oval Lamp |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×640×150mm |
|
Cabinet Resolution |
96dots×64dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
10m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
350 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40℃~+85℃Working:-20~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side |
|

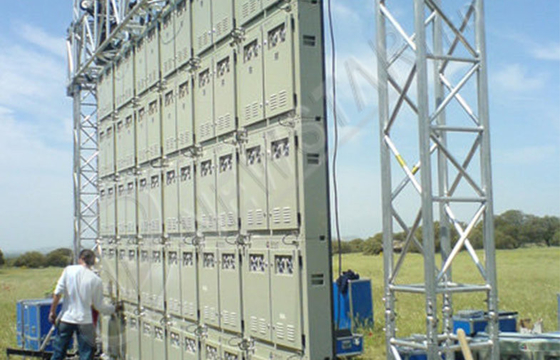

Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
160mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10mm |
Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
10000 dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
960mm*640mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
96 dots*64 dots |
Cabinet Pixel |
6144 |
|
Weight |
50 kg/ Cabinet |
Area |
0.6144㎡ |
|
Average Power Consumption |
300w/㎡ |
Max Consumption |
1000 W/m2 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. High Quality and High performance
2. Long Life Span
3. High Cost Effective
4. Free maintenance service
5. Front/Rear access Available
