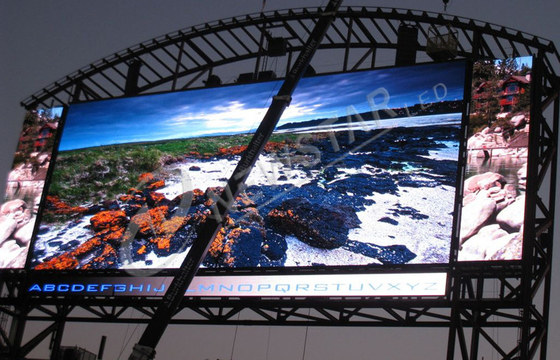

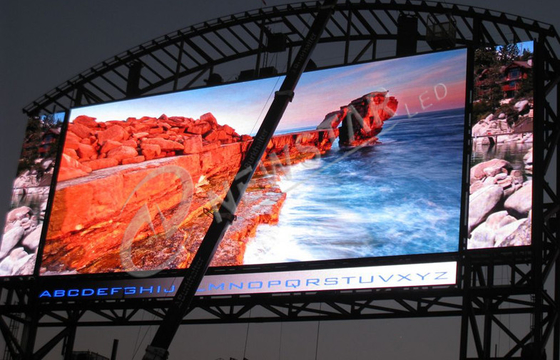

P25 Great waterproof LED Screen Video , Building outdoor full color led display

Large Image : P25 Great waterproof LED Screen Video , Building outdoor full color led display Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P25

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $600-1,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	20-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

Pixel Pitch:	25mm	Tube Chip Color:	Full Color
Product Name:	Led Display Panel/advertising Led Screen	Pixel Configuration:	2R1G1B
Use:	Outdoor	Protection Ratings:	IP65(Front Side );IP54(Back Side)
High Light:	led billboard advertising , outdoor led advertising signs

Quick Detail:

1. High brightness

2. Wide viewing angle and large viewing distance video led

3. LED outdoor waterproof video

4. Energy saving

5. CE.RoHS,CCC,ISO,UL

6. Waterproof Level: IP65(Front Side), IP54 (Back Side)

P25 Full Color Led Outdoor Display Board For Outdoor Building

Description:

1. Energy Saving

Adopt high-brightness LED with low consumption and 90% efficiency power supply saving 20% power

energy.

2. Durable fresh color and High brightness

65536 grey scale and the 281 billion color and more than 1200 HZ refresh rate ensure wonderful video

color presentation

3. Stability and reliability

Precise manufacturing process keeps the modules rugged and durable.

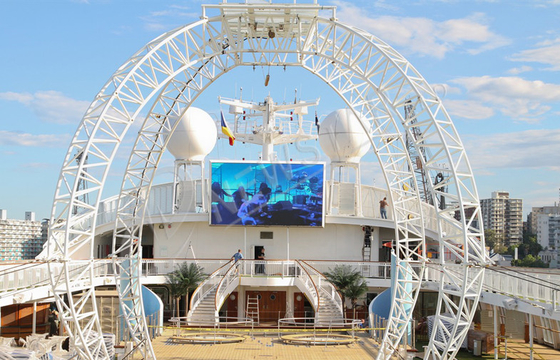

Applications:

Outdoor full color digital billboard are very popular in LED display advertising field. This type digital

billboards are widely used Outdoor plaza, Outdoor building, stadium, shopping mall, cross road ,highway,

airport etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P25
Pixel Pitch	25mm
Module Size	200mm×200mm
Module Resolution(Pixel)	8dots×8dots
Pixel Density	1600dots/m2
LED Type	5mm Oval Lamp
Pixel Configuration	2R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Static Constant Current
Cabinet Size	1000×1000×150mm
Cabinet Resolution	40dots×40dots
Brightness	≥6000cd/m2
Contrast	≥1500:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	18m-300m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	400W/m2
Average Power Consumption	130W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240-1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C~+85°C Working:-20°C~+60°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LINSN OR DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(Front Side), IP54 (Back Side)
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Dimensions (w x h)	200mmx200mm	Resolution (w x h)	8 x 8
Pixel pitch	25mm	Pixel Density	1600/㎡
Pixel Configuration	2R,1G,1B

3. Outdoor LED Display Cabinet

Dimensions(w x h x d)(mm)	1000x1000x150	Module Quantity	25
Physical Resolution (w x h)	40 x 40	Physical Pixels (total)	1600
Weight/Panel (kgs)	75	Material	Cold rolled steel
Average Power/sqm (watts)	130	Max Power/sqm(watts)	400
