High resolution 20mm Pixel pitch Full Color LED Display Panel For Building Top

Large Image : High resolution 20mm Pixel pitch Full Color LED Display Panel For Building Top Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $600-1,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	20-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

Pixel Pitch:	20mm	Tube Chip Color:	Full Color
Product Name:	Led Display Panel/advertising Led Screen	Pixel Configuration:	1R1G1B
Use:	Outdoor	Protection Ratings:	IP65(Front Side );IP54(Back Side)
High Light:	digital billboard advertising , outdoor led advertising signs

Quick Detail:

1. High brightness

2. Wide viewing angle and large viewing distance video led

3. Led outdoor waterproof video

4. Energy saving

5. CE.RoHS,CCC,ISO,UL

6. Long Lifespan > 100,000 hours

P20 Full Color Outdoor LED Display Panel For Building Top

Description:

1. Durable fresh color and High brightness

65536 grey scale and the 281 billion color and more than 1200 HZ refresh rate ensure wonderful video

color presentation

2. Energy Saving

Adopt high-brightness LED with low consumption and 90% efficiency power supply saving 20% power

energy.

3. Stability and reliability

Precise manufacturing process keeps the modules rugged and durable.

Applications:

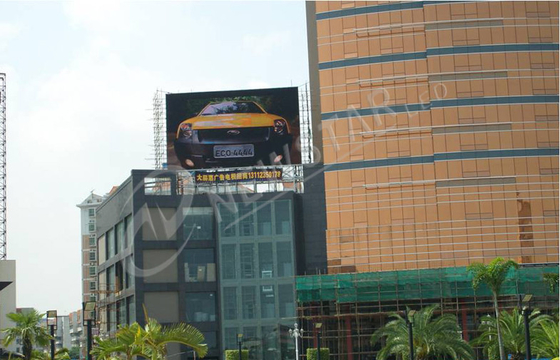

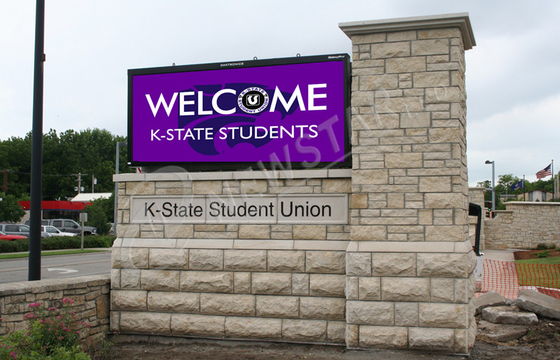

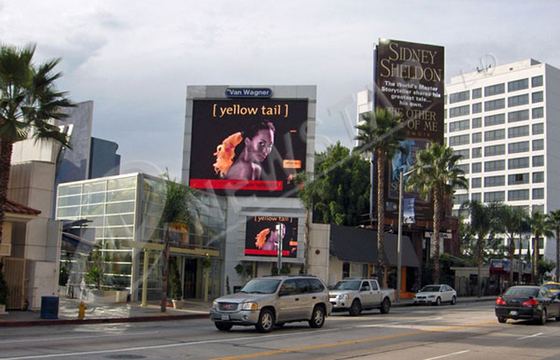

Outdoor full color digital billboard are very popular in LED display advertising field. This type digital

billboards are widely used outdoor plaza, outdoor building, stadium, shopping mall, cross road ,highway,

airport etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Item	NS-OR-SD-P20
Physical Pitch	20mm
Physical Densi(pixels/m2) (pixels/m2)	5000
LED Arrangement	1R1G1B
Module Resolution	16×8dots
Module Size(mm)	320×160mm
Cabinet Resolution	96×48dots
Cabinet Size(mm)	1280×960mm
Module Quantity	24pcs
Cabinet Weight	70KG
Brightness(cd/m2)	≥5000 cd/m2
Contrast	≥2000:1
View Angle	110°/50°
Minimum View Distance	10m
Maxim Power Consumption (W/m2)	1000
Ave. Power Consumption (W/m2)	350
Operating Power Source	AC90-260V 50-60HZ
Grey Scale	10bits/1024levels
Color Capacity	1.07billion
Drive Mode	Constant Current,Dynamic 1/4Duty
Frame Frequency	60-85HZ
Refresh Rate	240-1000 HZ
Brightness Adjustment	0-100 8 levels automatic
Gamma Correction	-0.5---5.0
Correction Scale level	16 bits
Color Temperature	5000-9300K
Brightness Correction	Pixel,Module,Cabinet Correction
Protection Ratings	IP65(Front Side ),IP54(Back Side)
Control Distance	UTP CAT5E:100m;Multi-mode Fiber:500m; Single-mode Fiber:10KM
Out of Control Rate	0.01%
MTBF	5000 hours
Operating Lifepan	100000 hours
Operating Temperature	-40°C~+65°C
Operating Humidity	10~90%RH

2. Outdoor LED Display Module

Module Size (W*H)	320mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	20mm	Resolution (W*H)	16 dots*8 dots
Pixel Density	2500 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1280mm*960mm	Module Qty	24 pcs
Cabinet Resolution (W*H)	64 dots*48 dots	Cabinet Pixel	3072
Weight	40 kg/ Cabinet	Area	1.228㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2
