Waterproof IP65 Curtain LED Display High Resolution , P15.625 Led Stage Screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Panel Dimension: | 500*500*95mm | Module Size: | 500*62.5mm |
|---|---|---|---|
| Cabinet Weight: | 17.6lbs | LED Tube Chip: | Full Color |
| LED Configuration: | 1R1G1B SMD3535 | Usage: | Outddoor |
| IP Rating: | IP65 | Warranty: | 2 Years |
| High Light: | outdoor led curtain display,outdoor led video display |
||
Waterproof IP65 Curtain LED Display High Resolution , P15.625 Led Stage Screen
Main Features
1. Flexible panel size 500*500*95mm with only 8kg/panel makes it portable.
2. Natural cooling with 18-35% transparency structure and no fans design which chieve less power consumption.
3. Easy to assemble with fast spring locks help to save installation time and labor.
4. High brightness standard which up to 6000cd/m2.

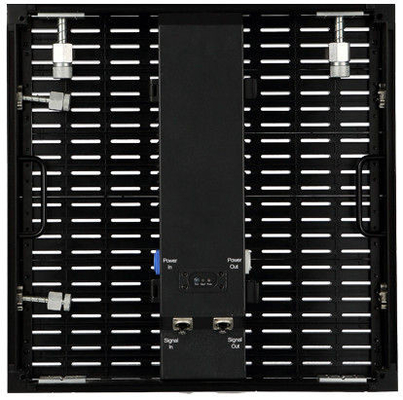

5. With power and signal indication outside the cover which help maintence.

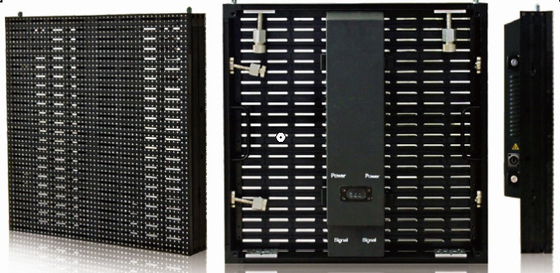

Product System
Via the following image,you can see the function details.
Specifications
| Model No. | WS-15.625 |
| Pixcel pitch | 15.625mm |
| Pixel density /sq.m | 4,096 pixels |
| LED configuration | 1R1G1B SMD 3535 |
| Module size | 500 x 62.5mm |
| Cabinet size | 500 x 500*95 mm |
| Panel resolution | 32 x 32dots |
| Scan way | Static constant current |
| Gray level | 16 bit |
| Viewing angle | H: 140° ; V : 140° |
| Refresh rate | 2,000 Hz |
| Panel weight | 8 kg |
| Brigtness | 6,000 CD / sq.m |
| Max. power consumption | 210 W/Panel |
| Avg. power consumption | 100 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Frame rate | 50-60 Hz |
| Blind dot rate | ≤ 0.01% |
| Control system | Novastar/ Linsn |
| IP rating | IP65 |
| Operation system | Windows / me / XP / 200NT |
| Working humidity | 10-90% RH |
| Working temperature | -20℃- 60℃ |
| Warranty | 2 years |
| Lifetime | 100,000 h |
Application
Featured like lightweight,ultra thin,transparent,WS LED curtain provides a perfect solution for stage and rental application. High reliability and high performance bringing exciting feeling to audiences.Curved solution is available.
Warranty
We offer 2 years' warranty and free replacement or repair to failure from:
1.Module,ventilator,power supply
2.Control system(graphics card,sender,receiver)
3.Cables
4.Software
Our advantages
a.International offices established
b.More than 5,000 projects all over the world
c.2000sq.m monthly production capacity
d.Independent and powerful R&D team
e.CE,ROHS,ISO9001 certified
