WS - 12.5 video Curtain LED Display Full Color , 18 -35% transparency
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 12.5 Mm | Pixel Density: | 6,400 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3535 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 1,920 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 500mm X 95 Mm |
| Cabinet Size: | 500mm X 1,000 Mm | Brightness: | 6,500 CD / Sq.m |
| Material: | Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/2 | Gray Scale: | 16 Bit |
| IP Rating: | IP65 | Lifespan: | 100,000 H |
| Usage: | Outdoor Curtain Led Display | Cabinet Weight: | 12.5 Kg |
| High Light: | led curtain screen,outdoor led video display |
||
WS - 12.5 video Curtain LED Display Full Color , 18 -35% transparency
It is widely used as outdoor advertising media , fixed installation .
1. Features & Advantages
1. It can meet different needs for both inner arc and outer arc structure ;
2. Curve shape with -15°~ +15°curve angle adjustment ;
3. SMD3535 leds with outdoor high brightness ;
4. With waterproof and wind-resistance design , for outdoor application ;
5 . Transparent and un-transparent structure for your optional .

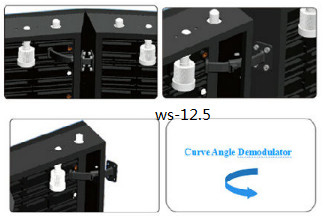

2. Panel structure in details
3. Main technical parameters
| Model No. | WS-12.5 |
| Pixcel pitch | 12.5 mm |
| Pixel density /sq.m | 6,400 pixels |
| LED configuration | 1R1G1B SMD 3535 |
| Module size | 500 x 95 mm |
| Cabinet size | 500 x 1,000 mm |
| Panel resolution | 40 x 80 dots |
| Scan way | 1/2 |
| Gray level | 16 bit |
| Viewing angle | H: 140° ; V : 140° |
| Refresh rate | 1,920 Hz |
| Panel weight | 12.5 kg |
| Brigtness | 6,500 CD / sq.m |
| Max. power consumption | 410 W/Panel |
| Avg. power consumption | 130 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Frame rate | 50-60 Hz |
| Blind dot rate | ≤ 0.01% |
| Control system | Novastar/ Linsn |
| IP rating | IP65 |
| Operation system | Windows / me / XP / 200NT |
| Working humidity | 10-90% RH |
| Working temperature | -20℃- 60℃ |
| MTBF | 35,000 h |
| Lifetime | 100,000 h |
4. Wrapped by pearl wool then packed in plywood case .
5. Application
Wind series WS-12.5 is ideal for advertising at Outdoor Plaza center , decoration of museum building , etc...
