P7.81 wind series outdoor fixed led curtain display for advertising , Aluminum structure
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 7.81 Mm | Pixel Density: | 16,384 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3535 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 1,920 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 500mm X 62.5 Mm |
| Cabinet Size: | 500mm X 500mm | Brightness: | 5000 CD / Sq.m |
| Material: | Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/4 | Gray Scale: | 16 Bit |
| IP Rating: | IP65 | Lifespan: | 100,000 H |
| Usage: | Outdoor Fixed Display | Cabinet Weight: | 8.5 Kg |
| High Light: | led curtain screen,outdoor led curtain display |
||
P7.81 wind series outdoor fixed led curtain display for advertising , Aluminum structure
Wind series outdoor LED Curtain with fashion design , can be transparent and un-transparent , can be curve shape , can be straight layout, which just made according to your requirement.
1. Key features & Advantages
1. Transparent and un-transparent type is available ;

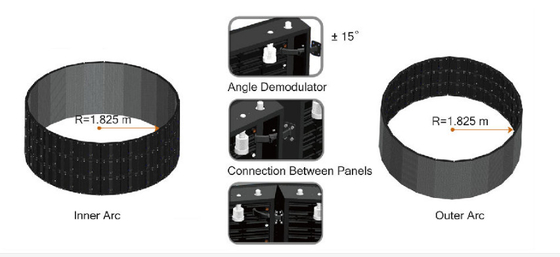

2. Curve shape is available ;
3. With power and signal indicators outside the cover
make inspection more easily ;
4. IP65 waterproof protection rating ;
5 . Natural cooling , fanless design .
2. Structure in details
3. Technical parameters of WS-7.81
| Model No. | WS-7.81 |
| Pixcel pitch | 7.81 mm |
| Pixel density /sq.m | 16,384 pixels |
| LED configuration | 1R1G1B SMD 3535 |
| Module size | 500 x 62.5 mm |
| Cabinet size | 500 x 500 mm |
| Panel resolution | 64 x 64 dots |
| Scan way | 1/4 |
| Gray level | 16 bit |
| Viewing angle | H: 140° ; V : 140° |
| Refresh rate | 1,920 Hz |
| Panel weight | 8.5 kg |
| Brigtness | 5000 CD / sq.m |
| Max. power consumption | 250 W/Panel |
| Avg. power consumption | 80 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Frame rate | 50-60 Hz |
| Blind dot rate | ≤ 0.01% |
| Control system | Novastar/ Linsn |
| IP rating | IP65 |
| Operation system | Windows / me / XP / 200NT |
| Working humidity | 10-90% RH |
| Working temperature | -20℃- 60℃ |
| MTBF | 35,000 h |
| Lifetime | 100,000 h |
4. Wrapped by pearl wool then packed in plywood case .
5. Application
Wind series WS- 7.81 is widely used as outdoor advertising , fixed installation , etc...
