Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen

I'm Online Chat Now
Certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
Thanks for checking the shipments, good that everything will be delivered today. thank you for your good service!

—— Samir from Netherlands

The display looks good so far! I only have the screen 1 showing but it is bright..

—— Craig Becker from USA

Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen

large.img.alt
small.img.alt small.img.alt

Large Image :  Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen Get Best Price

Product Details:
Place of Origin: Guang Dong, China (Mainland)
Brand Name: Newstar
Certification: CCC , CE ,ROHS , ETL
Model Number: WS-15.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: US $ 100 - 650 / Square Meter
Packaging Details: Plywood case
Delivery Time: 15-20 days
Payment Terms: Western Union, MoneyGram, D/A, D/P, L/C, T/T
Supply Ability: 6,000 Square Meters per Month
Detailed Product Description
Pixel Pitch: 15.6 Mm Pixel Density: 4,096 Pixels /sq.m
LED Type: SMD3535 LED Configuration: 1R1G1B
Refresh Rate: 1,920 Hz Driving IC: MBI 5124
Viewing Angle: 140°/140° Module Dimension: 500mm X 95 Mm
Cabinet Size: 500mm X 500 Mm Brightness: 6,000 CD / Sq.m
Material: Aluminum LED Chip: Epistar
Scan Way: Static Gray Scale: 16 Bit
IP Rating: IP65 Lifespan: 100,000 H
Usage: Outdoor Curtain Led Display Cabinet Weight: 8.5 Kg
High Light:

led curtain screen

,

outdoor led curtain display



Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen





1.  Features & Advantages





1.  Inner arc and outer arc structure are available ;



2. -15°~ +15° curve angle adjustment with angle demodulator  ;



3. Natural cooling , fanless ;



4. Lightweight and transparent deisgn , wind resistance ;





Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen 0

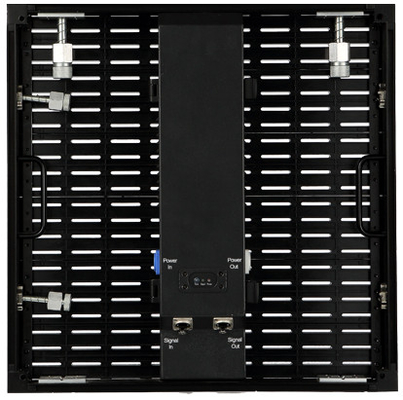

2. 500 x 500 mm Panel structure in details







Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen 1











3. Technical parameters



  Model No.   WS-15.6
  Pixcel pitch    15.6 mm
  Pixel density /sq.m   4,096 pixels
  LED configuration   1R1G1B SMD 3535
  Module size   500 x 95 mm
  Cabinet size   500 x 500 mm
  Panel resolution   40 x 80 dots
  Scan way    Static
  Gray level    16 bit
  Viewing angle   H: 140° ; V : 140°
  Refresh rate    1,920 Hz
  Panel weight    8.5 kg
  Brigtness    6,000 CD / sq.m
  Max. power consumption    210 W/Panel
  Avg. power consumption   70 W/ Panel
  Input voltage   AC 110-220 V (+-5 %)
  Frame rate     50-60 Hz
  Blind dot rate   ≤ 0.01%
  Control system     Novastar/ Linsn
  IP rating     IP65
  Operation system    Windows / me / XP / 200NT
  Working humidity    10-90% RH
  Working temperature    -20- 60
  MTBF    35,000 h
  Lifetime     100,000 h



4.  Packing material ( Pearl wool , plywood case ) .













                                    Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen 2





                                  Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen 3













5. Application



   Wind series WS-15.6 is ideal for outdoor advertising media at  shopping plaza  and decorations of commercial building , etc...





Waterproof advertising Curtain LED Display board , High Resolution Led Stage Curtain Screen 4
