P20 IP65 1R1G1B DIP Sports led video display panels Anticollision Energy saving

Large Image : P20 IP65 1R1G1B DIP Sports led video display panels Anticollision Energy saving Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	NEWSTAR
Certification:	CE,ROHS,FCC
Model Number:	NS-OIR-DD-P20

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	negotiable
Packaging Details:	wooden case
Delivery Time:	30-35woordays after downpayment received
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm per month

Contact Now

Detailed Product Description

Cabinet Material:	Iron	Panel Dimension:	1280*960mm
Module Size:	320*160mm	LED Tube Ship:	Full Color
LED Configuration:	1R1G1B DIP346	IP Rating:	IP65
Usage:	Outdoor	Warranty:	2 Years
High Light:	stadium led display , perimeter led screen

P20 IP65 1R1G1B DIP Sports led video display panels Anticollision Energy saving

Main Features

1. Screen can work directly under bright sunshine with brightness is over 6000cd/m^2.

^{2. Good quality led chip with low attenuation,long lifespan.}

^{3. With Strictly IP65 Rating testing before shipment which ensure the raining environment using.}

^{4. Good resistance to deformation with high hardness body.}

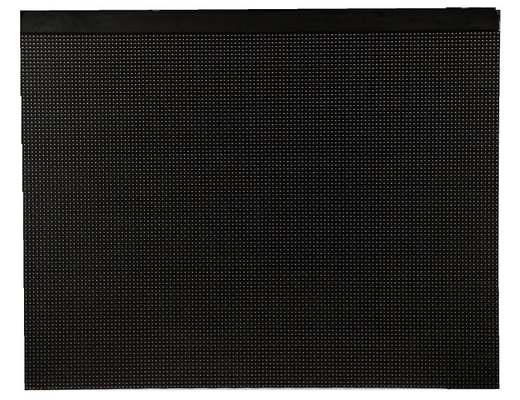

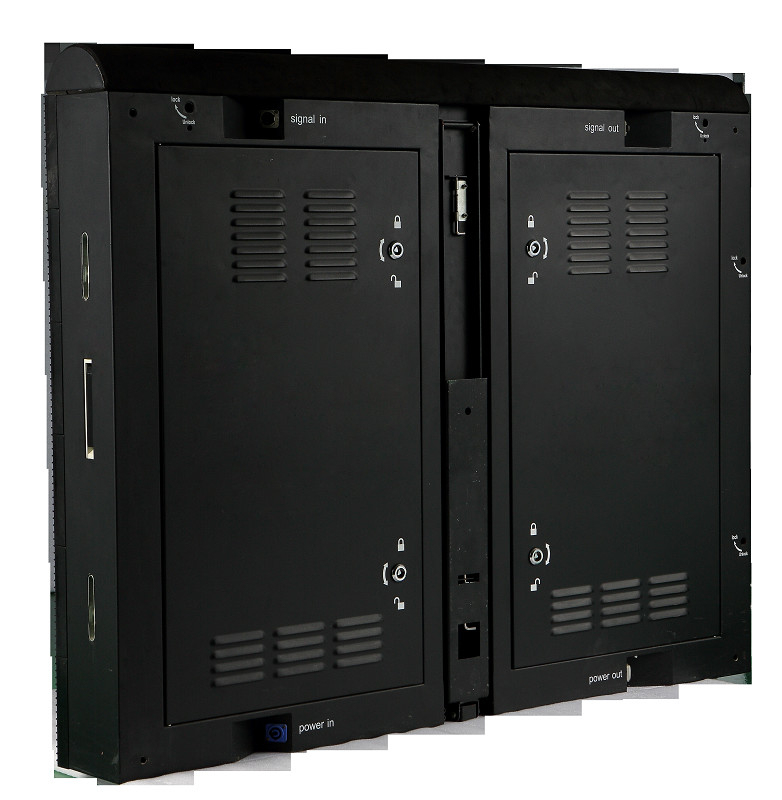

^{Product Images}

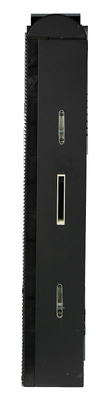

The foam we have designed on the top,considering Collison.

^{Specifications}

Modl Number	NS-OR-DD-P20
Pixel Pitch	20mm
Pixel Density	2500dots
LED Configuration	1R1G1B DIP 346
Module Size	320*160mm
Module Resolution	16*8dots
Panel Dimension	1280*960mm
Panel Resolution	64*48dots
Viewing Distance	15-300m
Driving Mode	Constant Static Current
Refresh Rate	1500hz
Brightness	6000cd/m²
Power Consumption	Avg:300W/Panel
Gray level	16.7million
Viewing Angle(H/W)	110º/45º
Lifespan	100,000hours at 50% brightness
IP Rating	IP65
Control System	Novastar/Linsn
Warranty	2 years

Application

Stadium inside and outside such as football match, baseball, basketball etc.

P20 IP65 1R1G1B DIP Sports led video display panels Anticollision Energy saving 1

Packing & shipment

Before package,the screen will be aging at least 72hours and under vibration testing.Considering the cost and stable structure,we suggest for the wooden case.

P20 IP65 1R1G1B DIP Sports led video display panels Anticollision Energy saving 2

Company Introduction

1.Who are we?

Established in 2009,we are a full color led screen manufaturing specialist in shenzhen,China.

2.What we have?

Over 5000sqm factory area,with hundereds of employees,many high tech machines to composite complete production lines,experienced R&D team etc.

3.What we offer?

Our products cover indoor,outdoor,curtain,curved led screen.Besides,customized solution is available.

Newstar are ready to be your reliable partner.

Are you ready?
