Product Details:
Payment & Shipping Terms:
|
| LED Type: | DIP | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 20mm | Product Name: | Stadium Perimeter Led Display/sports Perimeter Led Display |
| Protection Ratings: | IP65 | Tube Chip Color: | Full Color |
| Highlight: | sports perimeter led display,perimeter led screen |
||
Quick Detail:
1. Soft mask used
2. Quick rigging system design
3. Adjustable and flexible support
4. Waterproof and 2 years warranty
5. CE & Rohs Certified

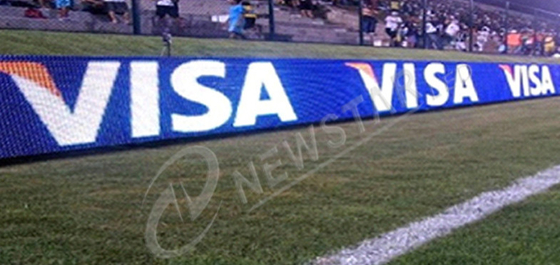

P20 DIP IP65 Full Color Stadium Perimeter LED Display , Energy Saving 1280mm * 960mm
Description:
1. High Brightness
More than 6500nits. Audience can view from a far distance.
2. Soft Mask
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
3. Quick rigging system
Quick rigging system makes installation and dismantle be easier and faster.
4. High Quality and Reliability
Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely
product issues are called.
5. Waterproof and 2 Year Warranty
Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well. CE & Rohs
approved
Applications:
Stadium inside and outside such as football pitch, baseball, basketball etc
Specifications:
1. Outdoor LED Display Module
|
Module Size (W*H) |
320mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
20mm |
Resolution (W*H) |
16 dots*8 dots |
|
Pixel Density |
2500 dots/㎡ |
LED Type |
DIp |
2. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1280mm*960mm |
Module Qty |
18 pcs |
|
Cabinet Resolution (W*H) |
96 dots*48 dots |
Cabinet Pixel |
4608 |
|
Weight |
60kg/ Cabinet |
Area |
1.23㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
3. Methods for Quality Assurance
a. Aging
b. Waterproof test
4. DIP Outdoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P20 |
|
Pixel Pitch |
20mm |
|
Module Size |
320mm×160 mm |
|
Module Resolution(Pixel) |
16dots×8dots |
|
Pixel Density |
2500dots/m2 |
|
LED Type |
DIP |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Static |
|
Cabinet Size |
1280×960×135mm |
|
Cabinet Resolution |
96dots×48dots |
|
Brightness |
≥6500 cd/m2 |
|
Contrast |
≥ 4000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
15m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP65 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
5. Factory Equipment
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
