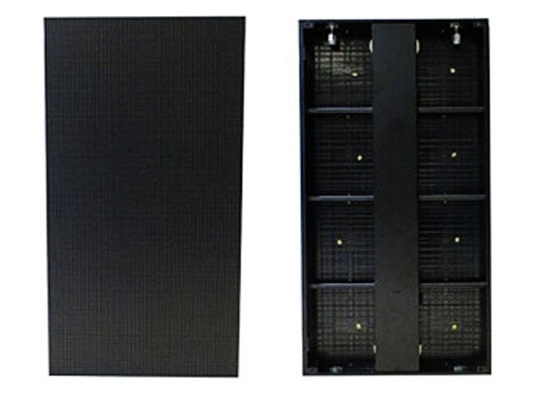

Light Weight Indoor Led Video Display , P 6.25 Aluminum Led Mesh Screen


Large Image :  Light Weight Indoor Led Video Display , P 6.25 Aluminum Led Mesh Screen Get Best Price

Product Details:
Place of Origin: Shenzhen
Certification: CE,RoHs, FCC, ISO9001
Model Number: P6.25 Rental LED Display
Payment & Shipping Terms:
Minimum Order Quantity: 2SQM
Price: US$ 1100~1200USD/SQM
Packaging Details: Flight case : 8 panels in one Case [ 696*828*840mm]
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000SQM/Month
Detailed Product Description
Pixel Pitch: 6.25 Mm LED Type: SMD3528
Certification: CE,ETL,FCC,CCC,ROHS Pixel Density: 25600pix/m2
Cabinet Material:: Aluminum Sheet Metal Refresh Rate: ≥900HZ
Color Depth: 14 Bit IP Rating: IP31
High Light:

outdoor led curtain display


outdoor led video display

Light Weight Indoor Led Video Display , P 6.25 Aluminum Led Mesh Screen






1.Free Radian Conjuction


2 Sets of radian locators make it possible to present image in concave and convex shape at customized radians.


2.Ultra Thin and Light Weight


10KG/cabinet makes it easy to carry and assemble.


3.Status Indicator


Status indicator on backcover lets you know the working status of LED cabinet without opening backcover.


4.Strengthening Ribs


The ribs effectively strengthens the construction of cabinet frame, and also can be used as carry handle.


Item P6.25 Indoor rental led mesh screen
Pixel Pitch: 6.25mm
Driving Method : 1/10
LED type : SMD3528
Brightness: ≥1300cd/m2
Pixel density : 25600pix/m2
Viewing angle: 120°H and 120°v
Module Size(W*H): 250*250mm
Cabinet Size(W*H*D): 500*1000*68mm
Cabinet weight: 9kg
Cabinet Material: Aluminum sheet metal
Avarage Power Consumption: 300 W/m2
Max Consumption : 680 W/m2
Refresh rate: ≥900HZ
Color Depth: 14bit
voltage : 200-240V
IP Rrating: IP31
Operating temperature : -20-60 degree
Storage temperature: -40-70 degree
Operation humidity: 10-90%
Storage humidity: 10-90%
Life span (hrs): ≥50000
MTBF (hrs) : ≥3500
Control system: Linsn/Nova
Source compatibility (with video processor): YC, VGA, DVI, YUV, SDI, RGB,CVBS,GD-SDI
Compliant standard: CE,FCC,RoHS,ETL,CCC


Application of P6.25 Indoor Rental LED Mesh


P6.25 LED mesh display multifunctional screen is with wide range of applications, it can be used as background

video wall for stage, can be a common screen to display high resolution images and videos, can be also dance

floor screen and so on. It is one of hot sellers in 2015, with high refresh rate which can be 1000HZ-2000HZ, and

long life time which can be over 50,000hours. P6.25 led mesh display multifunctional screen can be applied to any

sites as you like, such as conference, wedding, any kind of shows, even for TV stations.


Control System of P6.25 Indoor Stage Rental LED Mesh


P6.25 Indoor Rental LED Mesh


                                                         [System configuration Hardware]


P6.25 Indoor Rental LED Mesh

[System Layout Sketch]]


Trade terms and notes about P6.25 Indoor Stage Rental LED mesh

▪ FOB Price: 1100~1300 USD/㎡

▪ Payment Terms: T/T, L/C, West Union,Paypal

▪ Loading Port: Shenzhen

▪ Delivery: 20 working days

▪ Minimum Order: 5 SQM

▪ 2 Years’ Warranty


Packing Details of P6.25 Indoor Stage Rental LED mesh


P6.25 Indoor Rental LED Mesh


▪ Packing Case Type: Flight Case, 8 Panels or 8 Panels in One case

▪ Shipment:Ocean ShipmentandAir-transportation

▪ Forwarder Appointment: Can be customized




▪ Free Trainning: Installation, adjustment and operation

▪ After-sales Technical Support: online analysis about product default ,operation demonstration

▪ Free parts repairation and replcing during the warranty

▪ Supervise installation on construction site (Optional)
