1R1G1B P3 Stadium Perimeter LED Display SMD 2121 led screen for inside Stadium
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | stadium led display,perimeter led screen |
||
|---|---|---|---|
1R1G1B P3 Stadium Perimeter LED Display , SMD 2121 led screen for inside Stadium
Quick Detail:
1. 28°support adjustable
2. Waterproof and 2 years warranty
3. High Brightness more than 8000cd/sqm
4. Long lifespan up to 100,000 hours
5. Soft mark used
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:
1. High Brightness
More than 8000nits and it can be sawn from long distance.
2. Soft Mask
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
3. Adjustable support and quick rigging system
Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging
system design makes the installation and dismantle easier and faster.
4. Cost Effective LED display
16mm not only delivers enough resolution but also decrease the cost comparing with 10mm and 12mm.
5. Waterproof and 2 Year Warranty
Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.
Applications:

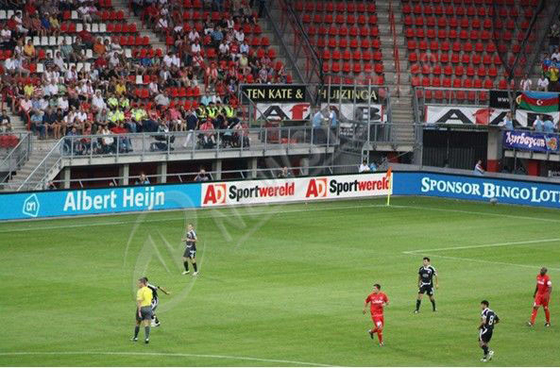

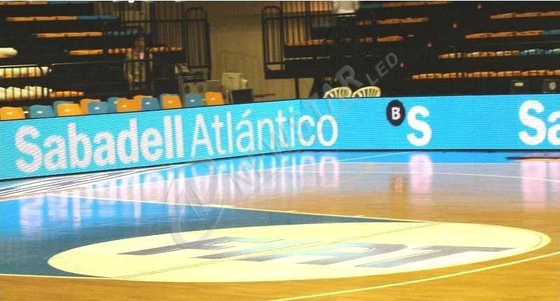

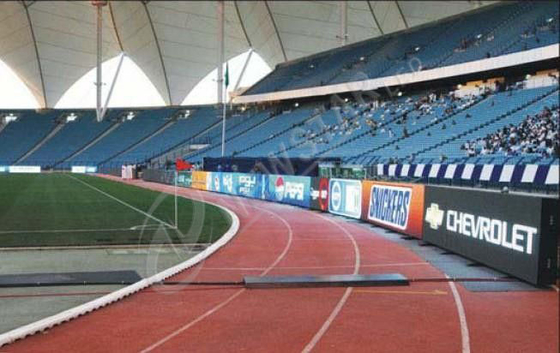

Stadium inside and outside such as football pitch, baseball, basketball etc.
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P3 |
|
Pixel Pitch |
3mm |
|
Module Size |
192mm ×96mm |
|
Module Resolution(Pixel) |
64dots ×32dots |
|
Pixel Density |
111,111dots/㎡ |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/16 Duty Constant Current |
|
Cabinet Size |
768 ×576 ×135mm |
|
Cabinet Resolution |
256dots ×192dots |
|
Brightness |
≥ 1800cd/㎡ |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Minimum Viewing Distance |
2m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16,777,216 |
|
Color Temperature |
5000-9300K |
|
Average Power consumption |
800W/㎡ |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Frequency |
240-1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Indoor LED Display Module
|
Module Size (W*H) |
192mm *96mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
3mm |
Resolution (W*H) |
64dots *32 dots |
|
Pixel Density |
111,111 dots/㎡ |
LED Type |
SMD2121 |
3. Indoor LED Display Cabinet
|
Cabinet Size (W*H) |
768mm ×576mm x135mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
256 dots*192 dots |
Cabinet Pixel |
49,152 |
|
Average Power Consumption |
800w/㎡ |
Cabinet Material |
Aluminum |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
