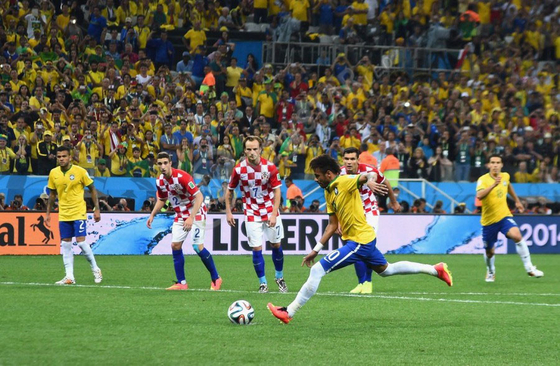

DIP P12 Stadium Perimeter LED Display Outdoor led screen for football match

Large Image : DIP P12 Stadium Perimeter LED Display Outdoor led screen for football match Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P12

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

sports perimeter led display

stadium led display

DIP P12 Stadium Perimeter LED Display , Outdoor led screen for football match

Quick Detail:

1. Best after sale service. 24/7 hours online remote support

2. Refresh Frequency ≥240HZ, Frame Frequency ≥60HZ,

3. High brightness: >6000cd/㎡,

4. Dynamic 1/4 duty Constant Current,

5. Front service available, easy maintenance

6. Best consistency with signal input, vivid color

Description:

1. High Quality and Reliability

This project has been installed almost 3 years in Turkmenistan, while there is no service called from now

on.

2. Perfect uniformity and no mosaic

Using same mixing LED lights to make sure the great LED board.

3. High Contrast

The Contrast is above 2000:1, so the viewer can have a wonderful visual.

Applications:

Stadium inside and outside such as football pitch, baseball, basketball etc.

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P12
Pixel Pitch	12mm
Module Size	192 mm ×192mm
Module Resolution(Pixel)	16 dots ×16dots
Pixel Density	6944 dots/㎡
LED Type	3mm Oval Lamp
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960mm ×768mm
Cabinet Resolution	80dots ×64dots
Brightness	≥ 5500 cd/㎡
Contrast	≥ 2000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	15~300 m
Grey Scale	10bits/1024levels
Color Capability	16,777,216
Color Temperature	5000-9300K
Average Power Consumption	600W/㎡
Working Voltage	AC220V/110V s±15% 50-60 HZ
Frame Frequency	≥ 60HZ
Refresh Frequency	≥ 240HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~ +85°C Working:-20°C ~ +60°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LINSN OR DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(front side), IP54 (back side)
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	192mm*192mm	Pixel Configuration	1R1G1B
Pixel Pitch	12mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	6,944 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm*768mm	Module Qty	20 pcs
Cabinet Resolution (W*H)	80 dots*64 dots	Cabinet Pixel	6944
Average Power Consumption	600w/㎡	Material	Aluminum

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Front/Rear access Available

2. Reasonable Price, Superior Service.

3. Long Life Span > 100,000 hours

4. Free maintenance service

5. High Quality and High performance
