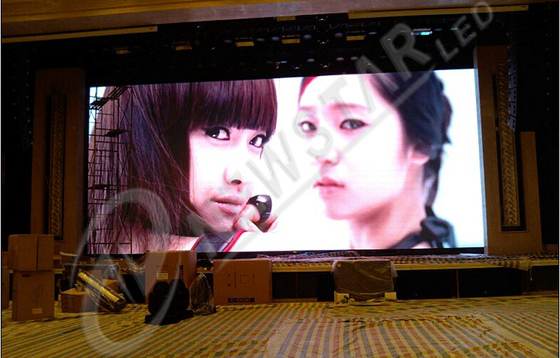

P15.625 Stage background LED video display, Outdoor SMD 3535 led screen

Large Image : P15.625 Stage background LED video display, Outdoor SMD 3535 led screen Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	WS-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $9,00-1,500 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

High Light:

stage background led screen

Stage Led Display

P15.625 Stage background LED video display, Outdoor SMD 3535 led screen

Quick Detail:

1. Unequalled brightness & extreme viewing angles

2. Slim, light-weight and easy to install.

3. Accurate color uniformity and smoother, flicker-free video

4. Ultimate picture quality, longevity and low cost of ownership

5. Available models: P7.81,P10.417, P12.5,P15.625.

Description:

1. Combining several global leading display board control technologies, such as grey level code

technology, brightness control technology, and nonlinearly rectifying technology

2. Modularization, high resolution and high contrast design, vivid dynamic display

3. Arbitrarily exchanging the display or displaying synchronized video

4. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon.

5. Economical maintenance and cost saving.

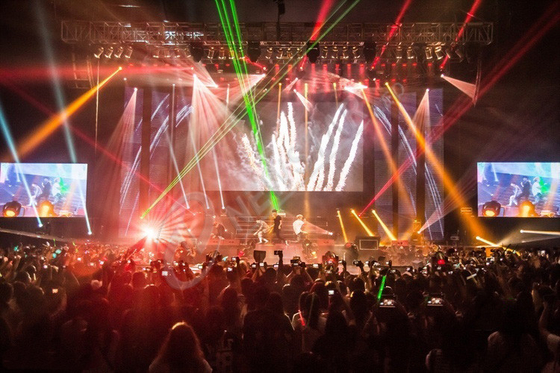

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station,schools,telecommunications,customs,stadiums,studio,shopping

malls, railways, airports, harbors, etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	WS-15
Pixel Pitch	15.625
Module Size	500*62.5
Module Resolution(pixels)	32*4
Panel Size	500mm×500mm
Panel Resolution(pixels)	32 × 32
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	4,096
Brightness(cdm2)	>6,000
Best Viewing Distance(m)	15-300
Max.Power Consumption(W/m2)	900
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	3535
Viewing Angle	140°(H)/140°(V)
Operating Temperature	–40~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Static constant current
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Outdoor LED Display Module

Dimensions (w x h)	500mm x 62.5mm	Resolution (w x h)	32 x 4
Pixel pitch	15.625mm	Pixel Density	4,096/㎡
Pixel Configration	1R1G1B 3 IN 1	LED Type	SMD 3535

3.Outdoor LED Display Cabinet

Dimensions(w x h x d)(mm)	500 x 500 x 95	Module Quantity	8
Physical Resolution (w x h)	32 x 32	Physical Pixels (total)	2,048
Weight/Panel (kgs)	8	Material	Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
