Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6.25 Mm | Pixel Density: | 25,600 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD3528 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 1,920 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 250mm X 250mm |
| Cabinet Size: | 500mm X 500mm | Brightness: | 1000 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/8 | Gray Scale: | 16 Bit |
| IP Rating: | IP31 | Lifespan: | 100,000 H |
| Usage: | Stage Led Screen | Cabinet Weight: | 8.5 Kg |
| Highlight: | led screens for events,Stage Led Display |
||

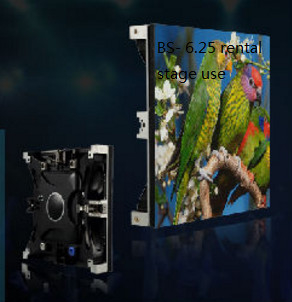

P6.25 stage led display billboard , High Brightness led video screen advertising
Beetle series support pixel-pixel brightness and color correction and gray scale adjustment with the latest control solution , bringing a stunning HD visual effect for audiences .
1. Product features
1. Slim panel , Die casting aluminum technology ;
2. Super thin and lightweight , only 8Kg/panel , easy to install with handles and fast locks ;
3. Fluently video display ,no fliker with high refresh rate 2880 Hz ;
4. 500x500mm Die-casting aluminum panel , nice appearance and good quality ;
5. Seamless and flatness to ensure high quality video effect ;
6. . No fan design , no noise .
2. panel structure in details
3. Technical parameters of BS- 6.25
| Model No. | BS- 6.25 |
| Pixcel pitch | 6.25 mm |
| Pixel density /sq.m | 25,600 pixels |
| LED configuration | 1R1G1B SMD 3528 |
| Module size | 250 x 250 mm |
| Cabinet size | 500 x 500 mm |
| Panel resolution | 80 x 80 dots |
| Scan way | 1/8 |
| Gray level | 16 bit |
| Viewing angle | H: 140° ; V : 140° |
| Refresh rate | 1,920 Hz |
| Panel weight | 8.5 kg |
| Brigtness | 1000 CD / sq.m |
| Max. power consumption | 170 W/Panel |
| Avg. power consumption | 55 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Frame rate | 50-60 Hz |
| Blind dot rate | ≤ 0.01% |
| Control system | Novastar/ Linsn |
| IP rating | IP31 |
| Operation system | Windows / me / XP / 200NT |
| Working humidity | 10-90% RH |
| Working temperature | -20℃- 60℃ |
| MTBF | 35,000 h |
| Lifetime | 100,000 h |
4. Packing by flight case , saving more packing cost and time .
5. Application
Beetle series BS-6.25 stage led display is suitable for stage rental , event show , concert , mobile advertising , etc...
