Outdoor P8 Stage LED Screen Stage Background Easy to install and dismantle led display rental
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Panel Material: | Die-casting Aluminum | Panel Size: | 640X640*75mm |
|---|---|---|---|
| Module Size: | 320X160mm | Brightness: | 6500nits |
| Cabinet Weight: | 13kg | LED Configuration: | 1R1G1B SMD3535 |
| IP Ingress: | IP65 | Warranty: | 2 Years |
Outdoor P8 Stage LED Screen Stage Background Easy to install and dismantle led display rental
Product Features:
1. Die-cast Aluminum Structure
Improving the display flatness,high-precision processing technology(0.05mm accuracy)
2. Lightweight & Ultra Thin
Only 13kg/panel,75mm thickness
3. Quick Set-up & Dismantle
Fast lock system saves installation time and labor cost
4. High Brightness
Brightness up to 6500nits,can work against direct sunlight
5. IP65 Rating
3535 SMD LED,high protection cabinet and module design
6. Easy to Maintain
Remove and replace the defect part individually to solve the sudden issue promptly
Product Advantages:
1. Combining several global leading display board control technologies, such as grey level code
technology, brightness control technology, and nonlinearly rectifying technology
2. Modularization, high resolution and high contrast design, vivid dynamic display
3. Arbitrarily exchanging the display or displaying synchronized video
4. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon.
5. Economical maintenance and cost saving.
Applications:
Kingkong stands for strong and intelligent.they are featured by robust,easy to set up and dismantle.It is a fantastic choice for outdoor usage.
Specifications:
1.Outdoor LED Display Technical Parameter
|
Model No. |
KS8 |
|
Pixel Pitch |
8mm |
|
Module Size |
320*160 |
|
Module Resolution(pixels) |
40*20 |
|
Panel Size |
640mm × 640mm |
|
Panel Resolution(pixels) |
80 × 80 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(pixels/m2) |
15,625 |
|
Brightness(cdm2) |
>6,500 |
|
Best Viewing Distance(m) |
8 |
|
Max.Power Consumption(W/m2) |
900 |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
3535 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Temperature |
–40~60°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥2000HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50,000 hours |
|
Lifespan |
≥100,000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/4 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Installation |
Wall mount, hung and stand structure |
2. Outdoor LED Display Module
|
Dimensions (w x h) |
360mm x 120mm |
Resolution (w x h) |
40 x 20 |
|
Pixel pitch |
8mm |
Pixel Density |
15,625/㎡ |
|
Pixel Configration |
1R1G1B 3 IN 1 |
LED Type |
SMD 3535 |

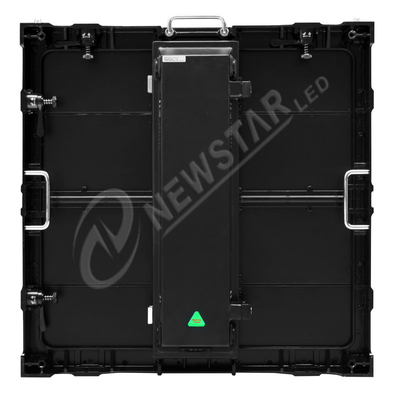

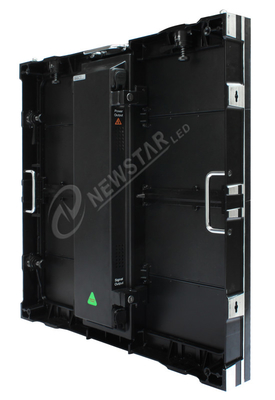

3. Outdoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
640 x 640 x 75 |
Module Quantity |
8 |
|
Physical Resolution (w x h) |
80 x 80 |
Physical Pixels (total) |
6,400 |
|
Weight/Panel (kgs) |
13 |
Material |
Aluminum Die casting |
|
Average Power/sqm (watts) |
330 |
Max Power/sqm(watts) |
900 |
4. Methods for Quality Assurance
Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
5. Package(Flight case)
