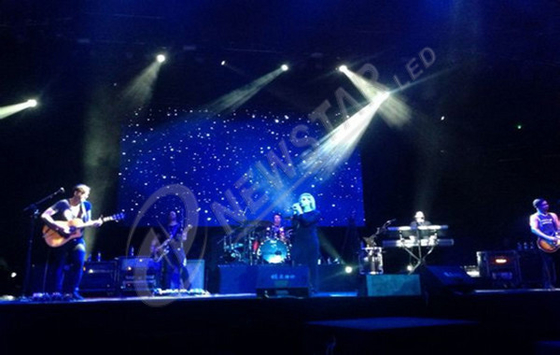

P4 Led Curtain Display Stage Led Screens Ultra Clear For Concert

Large Image : P4 Led Curtain Display Stage Led Screens Ultra Clear For Concert Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	LS-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $9,00-1,500 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

High Light:

led screens for events

Stage Led Display

Stage background P4 LED Curtain Display, Ultra clear Indoor led screen for concert

Quick Detail:

1. Unequalled brightness & extreme viewing angles

2. Slim, light-weight, modular design

3. Flexible shape and design

4. Accurate color uniformity and smoother, flicker-free video

5. Ultimate picture quality, longevity and low cost of ownership

6. Waterproof Level: IP31

Description:

1. Combining several global leading display board control technologies, such as grey level code

technology, brightness control technology, and nonlinearly rectifying technology

2. Modularization, high resolution and high contrast design, vivid dynamic display

3. Arbitrarily exchanging the display or displaying synchronized video

4. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth

of lamp or neon

5. Economical maintenance and cost saving

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station,schools,telecommunications,customs,stadiums,studio,shopping

malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	LS-4
Pixel Pitch	4mm
Module Size	288*288mm
Module Resolution(pixels)	72*72
Panel Size	576mm×576mm
Panel Resolution(pixels)	144 × 144
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	62,500
Brightness(cdm2)	>1,500
Best Viewing Distance(m)	4-100
Max.Power Consumption(W/m2)	900
Waterproof Level	IP31
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	2020
Viewing Angle	140°(H)/140°(V)
Operating Temperature	–40~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/18
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	288mm x 288mm	Resolution (w x h)	72 x 72
Pixel pitch	4mm	Pixel Density	62,500/㎡
Pixel Configration	1R1G1B 3 IN 1	LED Type	SMD 2020

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	576 x 576 x 83	Module Quantity	4
Physical Resolution (w x h)	144 x 144	Physical Pixels (total)	20,736
Weight/Panel (kgs)	9	Material	Die casting Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
