P16 Stadium Perimeter LED Display , Outdoor Full Color Waterproof IP65

Large Image : P16 Stadium Perimeter LED Display , Outdoor Full Color Waterproof IP65 Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P16

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

LED Type:	3mm Oval Lamp	Pixel Configuration:	1R1G1B
Protection Ratings:	IP65	Tube Chip Color:	Full Color
Use:	Outdoor
High Light:	stadium led display , perimeter led screen

P16 Stadium Perimeter LED Display , Outdoor Full Color Waterproof IP65

Quick Detail:

1. 28°support adjustable

2. Waterproof and 2 years warranty

3. High Brightness more than 8000cd/sqm

4. Long lifespan up to 100,000 hours

5. Soft mark used

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

P16 Stadium Perimeter LED Display , Outdoor Full Color Waterproof IP65 and 2 years warranty

Description:

1. High Brightness

More than 8000nits and it can be sawn from long distance.

2. Soft Mask

Soft mask design delivers good protection to the players and also decreases damage to LEDs.

3. Adjustable support and quick rigging system

Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging

system design makes the installation and dismantle easier and faster.

4. Cost Effective LED display

16mm not only delivers enough resolution but also decrease the cost comparing with 10mm and 12mm.

5. Waterproof and 2 Year Warranty

Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.

Applications:

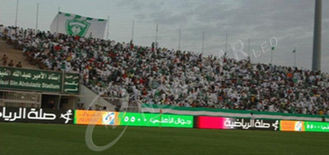

Stadium inside and outside such as football pitch, baseball, basketball etc

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P16
Pixel Pitch	16mm
Module Size	256mm×256mm
Module Resolution(dots)	16*16
Panel Size	1024mm×768mm
Panel Resolution(dots)	64×48
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	3906
Brightness(cd/m²)	≥ 8000
Best Viewing Distance(m)	15-300
Max. Power Consumption(W/m²)	1000
Drive Mode	Static
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Life Span	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	256mm*256mm	Pixel Configuration	1R1G1B
Pixel Pitch	16mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	3906 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1024mm*768mm	Module Qty	12 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like neutrik flight connector, MBI IC etc.
