Waterproof Indoor Curtain LED Display IP65 , SMD 3535 Advertising LED Display Boards
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tube Chip Color: | Full Color | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 15mm | Product Name: | Led Display Panel/outdoor Full Color Led Signs |
| Protection Ratings: | IP65(Front Side );IP54(Back Side) | Use: | Outdoor |
| High Light: | led curtain screen,outdoor led curtain display |
||
Waterproof Indoor Curtain LED Display IP65 , SMD 3535 Advertising LED Display Boards
Quick Detail:
1. High brightness: >7000cd/㎡
2. Lightweight :< 8.5KG/panel. Ultra thin: 95mm thickness
3. Waterproof Level: IP65(Front Side), IP54 (Back Side)
4. CE,CCC,RoHS,UL,ISO9001
5. Cabinet connection angle can be adjusted by -15 degree to +15 degree
6. Flight case for convenient transport and equipments protection
IP65 P15 1R1G1B Curtain LED Display , SMD 3535 Advertising LED Display Boards
Description:
1. High brightness & Waterproof
Brightness up to 7000nits, IP65 waterproof level. It provides a perfect solution for outdoor stage use.
2. Light Weight & Pretty Thin
Made by excellent aluminum material, each panel only weights 8.5 KG which makes installation job and
delivery be much more comfortable and convenient. Pretty thin thickness 95mm not only saves delivery
space but also saves installation space.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you can shape arc
shapes.
4. Fast Lock System & Natural Cooling System Design
Fast lock system enables installation and dismantle to be much faster: an average worker can finish 50- 70
panels per hour. Natural cool system design results in good heat dissipation and less power consuming.

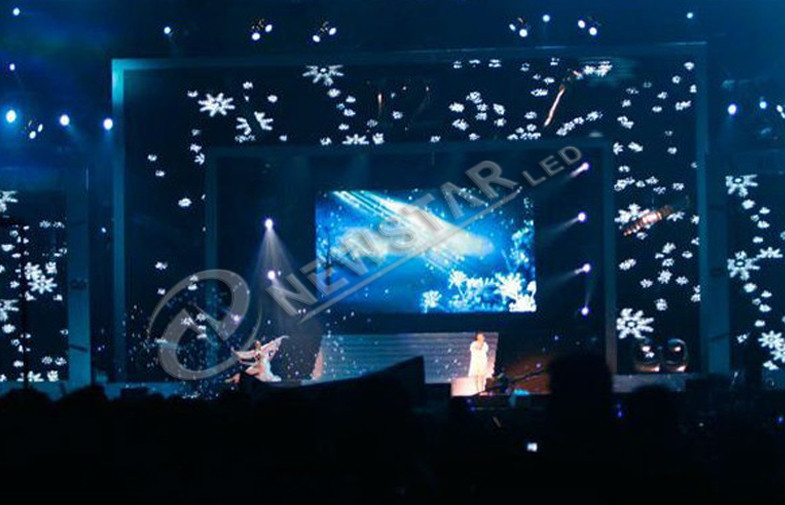

Applications:
Rental, Stage, Events, Show, Exhibition, Entertainment, Concerts
Specifications:
1. WS15 Technical Parameter
|
Model No. |
WS15 |
|
Pixel Pitch |
15.625mm |
|
Module Size |
500mm*62.5mm |
|
Module Resolution (W*H) |
32 dots*4 dots |
|
Pixel Density |
4096 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
500×500×95mm |
|
Cabinet Resolution |
32dots×32dots |
|
Brightness |
≥7000cd/㎡ |
|
Contrast |
≥4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1500 W/m2 |
|
Average Power Consumption |
700 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
2. 15mm LED Curtain Module
|
Module Size (W*H) |
500mm*62.5mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
15.625mm |
Resolution (W*H) |
32dots*4 dots |
|
Pixel Density |
4096dots/㎡ |
LED Type |
SMD 3535 |
3. 15mm LED Curtain Cabinet
|
Cabinet Size (W*H) |
500mm*500mm |
Module Qty |
8 pcs |
|
Cabinet Resolution (W*H) |
32 dots*32dots |
Cabinet Pixel |
1024 |
|
Weight |
8.5kg/ Cabinet |
Area |
0.25㎡ |
|
Average Power Consumption |
700w/㎡ |
Max Consumption |
1500 W/m2 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case or Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
