Small P15 LED Video Wall Curtain Display , SMD 3535 Outdoor LED Advertising Signs
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tube Chip Color: | Full Color | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 15mm | Product Name: | Led Display Panel/outdoor Full Color Led Signs |
| Protection Ratings: | IP65(Front Side );IP54(Back Side) | Use: | Outdoor |
| High Light: | outdoor led curtain display,outdoor led video display |
||
Small P15 LED Video Wall Curtain Display , SMD 3535 Outdoor LED Advertising Signs
Quick Detail:
1. Waterproof Level: IP65(Front Side), IP54 (Back Side)
2. Lightweight :< 8.5KG/panel.
3. High brightness: >7000cd/㎡
4. CE,CCC,RoHS,UL,ISO9001
5. Ultra thin: 95mm thickness
6. Flight case for convenient transport and equipments protection
P15 Rental LED Video Wall Curtain Display , SMD 3535 Outdoor LED Advertising Signs
Description:
1. High brightness & Waterproof
Brightness up to 7000nits, IP65 waterproof level. It provides a perfect solution for outdoor stage use.
2. Light Weight & Pretty Thin
Made by excellent aluminum material, each panel only weights 8.5 KG which makes installation job and
delivery be much more comfortable and convenient. Pretty thin thickness 95m m not only saves delivery
space but also saves installation space.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you can shape arc
shapes.
4. Fast Lock System & Natural Cooling System Design
Fast lock system enables installation and dismantle to be much faster: an average worker can finish 50- 70
panels per hour. Natural cool system design results in good heat dissipation and less power consuming.

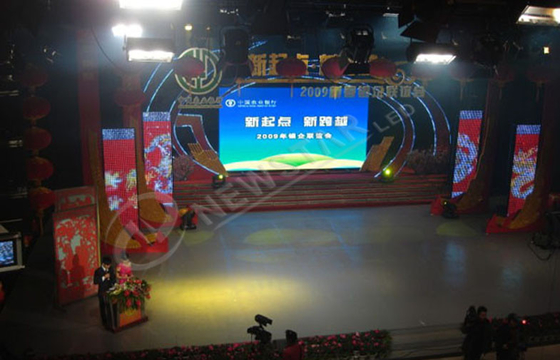

Applications:
Rental, Stage, Events, Show, Exhibition, Entertainment, Concerts
Specifications:
1. WS15 Technical Parameter
|
Model No. |
WS15 |
|
Pixel Pitch |
15.625mm |
|
Module Size |
500mm*62.5mm |
|
Module Resolution (W*H) |
32 dots*4 dots |
|
Pixel Density |
4096 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
500×500×95mm |
|
Cabinet Resolution |
32dots×32dots |
|
Brightness |
≥7000cd/㎡ |
|
Contrast |
≥4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1500 W/m2 |
|
Average Power Consumption |
700 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
2. 15mm LED Curtain Module
|
Module Size (W*H) |
500mm*62.5mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
15.625mm |
Resolution (W*H) |
32dots*4 dots |
|
Pixel Density |
4096dots/㎡ |
LED Type |
SMD 3535 |
3. 15mm LED Curtain Cabinet
|
Cabinet Size (W*H) |
500mm*500mm |
Module Qty |
8 pcs |
|
Cabinet Resolution (W*H) |
32 dots*32dots |
Cabinet Pixel |
1024 |
|
Weight |
8.5kg/ Cabinet |
Area |
0.25㎡ |
|
Average Power Consumption |
700w/㎡ |
Max Consumption |
1500 W/m2 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case or Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
