Commercial SMD 3 in 1 HD LED Display Advertising Screen With High Definition
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Led Display Screen/led Display Panels | Pixel Pitch: | 5.21mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Tube Chip Color: | Full Color |
| Use: | Outdoor | Protection Ratings: | IP31 |
| High Light: | High Definition LED display,led display boards |
||
Commercial SMD 3 in 1 HD LED Display Advertising Screen With High Definition
Quick Detail:
1. Available models: P3.91, P4.46,P5.2, P6.25..
2. Brilliant contrast ratio with 4000:1 , high resolution/high definition
3. Light weight and easy to move and install
4. Best uniformity and no mosaic
5. Ultra thin cabinet: thickness is 75mm, weights 6.5Kg
6. Pixel Configration:1R1G1B 3 IN 1
Super Thin SMD P5.21mm Lightweight LED Display With High Definition
Description:
1. Ultra thin cabinet
Each panel is only 500*500mm, thickness is 75mm, weights 6.5Kg.
2. Clear vivid image quality:
High refresh rate 1800Hz, without any loss of grey level.
3. Easy Installation & Operation:
Full aluminum design with exquisite design, user friendly software for an easier operation
4. Fanless design & good heat dissipation

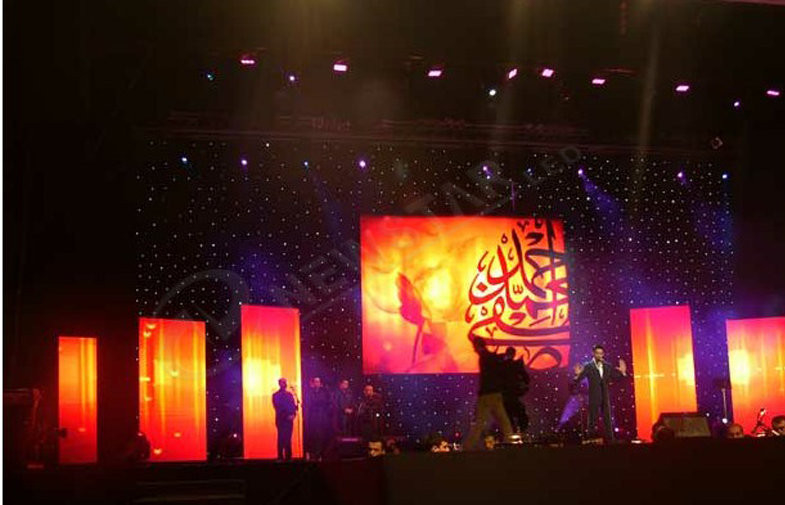

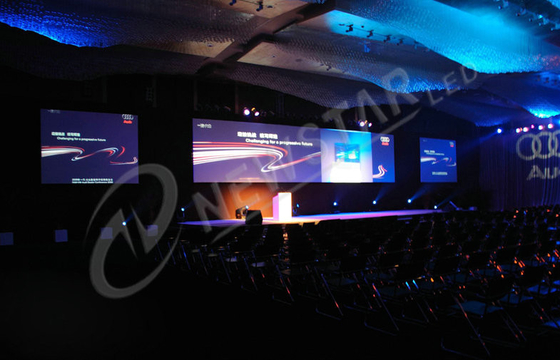

Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Technique |
SMD |
|
Pixel structure |
1R1G1B 3in1 |
|
Pixel pitch |
5.21mm |
|
Pixel density |
36,864 dots/㎡ |
|
Luminance |
2,000cd/㎡ |
|
Module dimension |
250mm(W) * 250mm(H) |
|
Module resolution |
48 pixel(W) * 48 pixel mm(H) |
|
Cabinet dimension |
500 * 500mm |
|
Cabinet resolution |
96 * 96 |
|
Cabinet area |
0.25 sq.meter |
|
Optimal visual distance |
>3m |
|
Visual angel |
140 degree (H/V) |
|
Max power consumption |
≤800w / ㎡ |
|
Average power consumption |
≤350w / ㎡ |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Gray scale |
Point by point 4096 gray grade levels of |
|
each color,16 bits correction available |
|
|
Drive mode |
1/16 dynamic scan, constant current |
|
Frame frequency |
≥60HZ |
|
Refresh frequency |
≥1000HZ |
|
Input voltage |
AC 90~260 volts |
|
Operation temperature |
﹣40℃~ +60℃ |
|
Operation humidity |
10％～90％ |
|
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
|
Lifespan (50% brightness) |
100,000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Ingress protection rate |
IP31 |
|
Cabinet material |
Aluminum alloy / iron |
|
Application: |
Rental / Permanent installation available |
2. Indoor LED Display Module
|
Dimensions (w x h) |
250mmx250mm |
Resolution (w x h) |
48 x 48 |
|
Pixel pitch |
5.2mm |
Pixel Density |
36864/㎡ |
|
Pixel Configration |
1R1G1B 3 IN 1 |
|
|
3. Indoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
500x500x75 |
Module Quantity |
4 |
|
Physical Resolution (w x h) |
96 x 96 |
Physical Pixels (total) |
9216 |
|
Weight/Panel (kgs) |
7.5 |
Material |
Aluminum |
|
Average Power/sqm (watts) |
330 |
Max Power/sqm(watts) |
900 |
4. Methods for Quality Assurance
a.Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b.Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online remote support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
