Product Details:
Payment & Shipping Terms:
|
Material: | Die Casting Aluminum | Pixel Pitch: | 2.083 |
---|---|---|---|
Module Size: | 200mm X 150mm | Cabinet Size (W×H×D): | 400×300×80mm |
Light Weight: | 5kg | Ultra Thin: | 80mm |
High Light: | High Definition LED display,high resolution led screen |
Main features of Newstar P2.08 are as follows:
1. SMD 3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 5kg.
8.Standard cabinet size is 400mm*300mm.
9.Dustproof design, the screen is rated IP43.

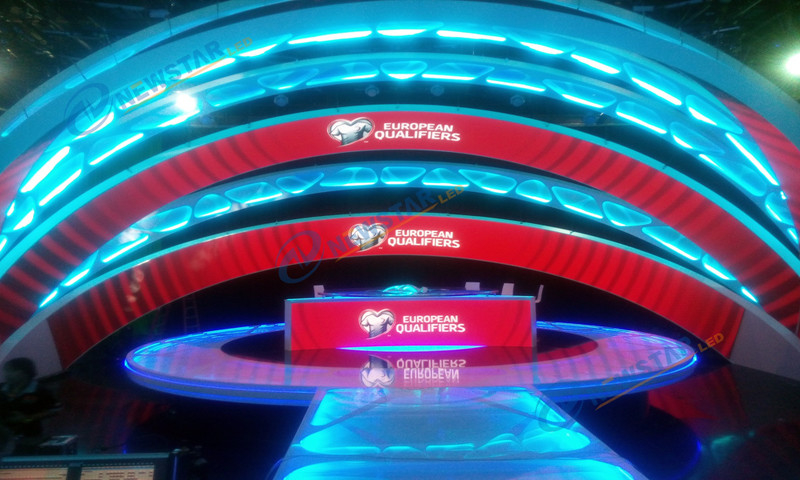

Application of HD LED TV
P2.08 indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
Parameter
Parameter | Value | Unit |
Pixel pitch | 2.083 | mm |
Pixel configuration | R,G,B 3in1 | |
SMD type | 1010 | — |
Pixels per sq.m. | 230,400 | dot |
Module Size | 200 x 150 | mm |
Module Resolution | 96 x 72 | dot |
Cabinet size (W×H×D) | 400×300×80 | mm |
Cabinet Resolution | 192 x 144 | dot |
Pixels per cabinet | 27,648 | dot |
Cabinet area | 0.12 | sq.m. |
Cabinet material | Die Casting Aluminum | — |
Cabinet weight | 5 | kg |
Brightness | ≥1500 | nits |
Viewing angle-H | 120 (+60/-60) | deg. |
Viewing angle-V | 120 (+60/-60) | deg. |
Ingress protection | indoor use | — |
Minimum viewing distance | 1 | m |
Gray scale | 65536 | level |
Brightness control | 256 | level |
Refresh frequency | >3500 | Hz |
Driving mode | 1/24scan | — |
Input voltage (AC) | 100 ~ 240 | V |
Input power frequency | 50 or 60 | Hz |
Power consumption per sq.m. (max/avg) | 900/300 | W |
Blind spot rate | <1/10000 | — |
Lifetime at 50% brightness | 100000 | Hour |
Operating temperature | –25~﹢40 | ℃ |
Operating humidity | 10% ~ 90% | — |
Signal input format (with video processor) |
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
— |
Operating system | Windows (2000/XP/Vista) | — |
Control distance | CAT5 cable <100 m Single fiber <10 km |
— |
