1R1G1B High Definition LED Display P10 Led Screen 500x1000mm


Large Image :  1R1G1B High Definition LED Display P10 Led Screen 500x1000mm Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: WS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-3,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
Brightness: >6000cd/㎡1 Product Name: Led Display Screen/led Display Panels
Pixel Pitch: 10.417mm Pixel Configuration: 1R1G1B
Tube Chip Color: Full Color Protection Ratings: IP65(Front Side );IP54(Back Side)
High Light:

High Definition LED display


high resolution led screen

 Outdoor Light Weight HD LED Display P10mm 500x1000mm With CE / CCC / RoHS


Quick Detail:


1. Waterproof Level: IP65(Front Side), IP54 (Back Side)


3. Lightweight :< 12.5KG/panel. Ultra thin: 95mm thickness

4. High brightness: >6000cd/㎡

5. Package with flight case, easy to move

6. Special cabinet design, cooling fast


P10.417 Stage Background LED Screen Advertising For Gov Publication




1. Angle Adjustment

Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you shape arc


2. High brightness & Waterproof

Brightness reaches 6000nits, IP65. It is perfect to be used for both indoor and outdoor.

3. Light Weigh & Ultra Thin

Made by high quality aluminum material, one cabinet only weights 12.5 KG. It makes installation job and

delivery more comfortable and convenient. 95 mm thickness saves not only space for delivery but also


4. Fast Lock System & No Fan Design

Easy to install and dismantle: an average worker can finish 70 panels per hour. Natural cool system design

and good heat dissipation.

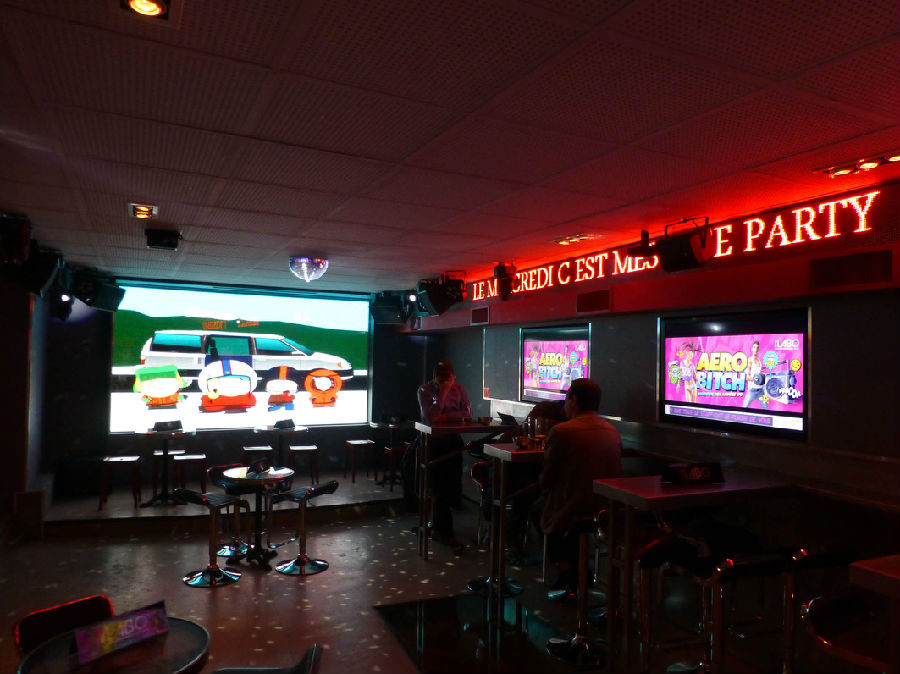

Live broadcast: Gym, Stadium, Concert, Sport match, Competition, Gov publication etc.

Rental business: Entertainment, Wedding, Party etc.



1. Indoor LED Display Technical Parameter


≥6000 nit

Color temperature

6500/9000 K

Viewing angle-H

140 (+70/-70) deg.

Viewing angle-V

140 (+70/-70) deg.

Cabinet weight

12.5 kg

Cabinet size (W×H×D)

500×1000×95 mm

Cabinet area

0.5 sqm.

Cabinet material


Ingress protection (Front/Rear)


Operating temperature

–20~+60 degree

Operating humidity

10%~ 90%

Pixel configuration


Pixel pitch

10.417 mm

Module size

250x250 mm

Pixel matrix per module

24x24 dots

Pixel matrix per cabinet

48x96 dots

Pixels per cabinet

4608 dots

Pixels per sq.m.

9216 dots

Minimum viewing distance

10 m

Gray scale

4096 level

Brightness control

256 level

Refresh frequency

>1000 Hz

Driving mode

1/6 scan constant current driving

Input voltage (AC)

100 ~ 240 V

Input power frequency

50 or 60 Hz

Power consumption per sq.m. (max/avg)

800/300 W

Blind spot rate


Lifetime at 50% brightness

100000 hours

Red wavelength (Typical)

623 nm

Green wavelength (Typical)

523 nm

Blue wavelength (Typical)

475 nm

Signal input format
(with video processor)

AV, S-Video, VGA, DVI, YPbPr,

Operating system

Windows (2000/XP/Vista)

Control distance

CAT5 cable <100 m
Single fiber <10 km



2. LED Curtain Cabinet


Dimensions(w x h x d)(mm)


Cabinet area

0.5 sqm.

Physical Resolution (w x h)


Physical Pixels (total)


Weight/Panel (kgs)




Average Power/sqm (watts)


Max Power/sqm(watts)



3. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level


b. Vibration Testing

 Condition: 3-5 mins up and down in 5mm range


4. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


5. Package

Flight case and Fumigation-Free wooden case


6. Control System Connection

7. Competitive Advantage:

1.2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
