Commercial Advertising Largest High Definition Video Screen For Business Establishment

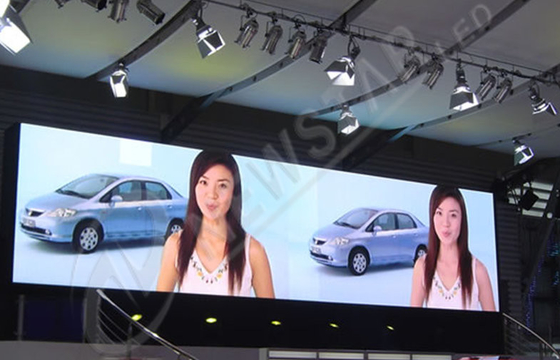

Large Image : Commercial Advertising Largest High Definition Video Screen For Business Establishment Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	CS-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Product Name:	Led Display Screen/led Display Panels	Pixel Pitch:	6.25mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Outdoor	LED Type:	SMD3528
High Light:	High Definition LED display , led display boards

Commercial Advertising Largest High Definition Video Screen For Business Establishment

Quick Detail:

1. Excellent contrast ratio, high resolution/high definition

2. Bravo uniformity and no mosaic

3. Light weight and easy to install

4. Available models: P3.91, P4.46,P5.2, P6.25.

5.Panel is only 500*500mm, thickness is 55mm, weights 8Kg

6. Waterproof Level: IP21

Description:

1. Ultra slim cabinet

Each panel is only 500*500mm, thickness is 55mm, weights 8Kg.

2. Clear vivid image quality:

High refresh rate 1000Hz, without any loss of grey level.

3. Easy Installation & Operation:

Full aluminum design with exquisite design, user friendly software for an easier operation

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	NS-IR-DS-P6.25
Pixel Pitch	6.25mm
Module Size	250*250mm
Module Resolution(pixels)	32*32
Panel Size	500mm×500mm
Panel Resolution(pixels)	80×80
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	25600
Brightness(cdm2)	2000
Best Viewing Distance(m)	6-100
Max.Power Consumption(W/m2)	1350
Waterproof Level	IP21
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	3528
Viewing Angle	140°(H)/60°(V)
Operating Temperature	–20~50°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50000 hours
Lifespan	≥100000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/10
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	250mmx250mm	Resolution (w x h)	40 x 40
Pixel pitch	6.25mm	Pixel Density	25600/㎡
Pixel Configration	1R1G1B 3 IN 1	LED Type	SMD3528

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	500x500x75	Module Quantity	4
Physical Resolution (w x h)	80 x 80	Physical Pixels (total)	6400
Weight/Panel (kgs)	7.5	Material	Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
