DIP P20 Outdoor LED Display Board , 1R1G1B Sports Perimeter LED Display For Basketball Pitch

Large Image : DIP P20 Outdoor LED Display Board , 1R1G1B Sports Perimeter LED Display For Basketball Pitch Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

LED Type:	DIP	Pixel Configuration:	1R1G1B
Pixel Pitch:	20mm	Product Name:	Stadium Perimeter Led Display/sports Perimeter Led Display
Tube Chip Color:	Full Color	Use:	Indoor
High Light:	sports perimeter led display , perimeter led screen

DIP P20 Outdoor LED Display Board , 1R1G1B Sports Perimeter LED Display For Basketball Pitch

Quick Detail:

1. 28°support adjustable

2. Soft mark used

3. High Brightness more than 8000cd/sqm

4. Long lifespan up to 100,000 hours

5. Waterproof and 2 years warranty

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

Description:

1. High Quality & High Brightness

High Quality enables LED display can be used in all weather condition and long life span More than

6500nits. Audience can view from a far distance.

2. Soft Mask

Soft mask design delivers good protection to the players and also decreases damage to LEDs.

3. Quick rigging system

Quick rigging system makes installation and dismantle be easier and faster.

4. 2 Year Warranty & Permanent maintenance

2 years warranty includes free replacement and free repair job etc. Maintenance job never ends before the product’s life expires.

Applications:

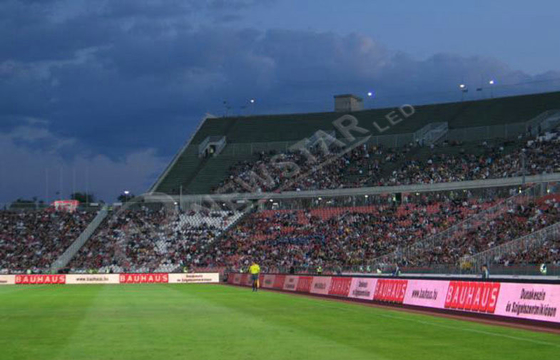

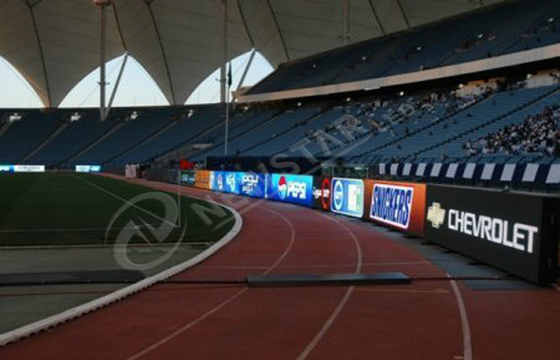

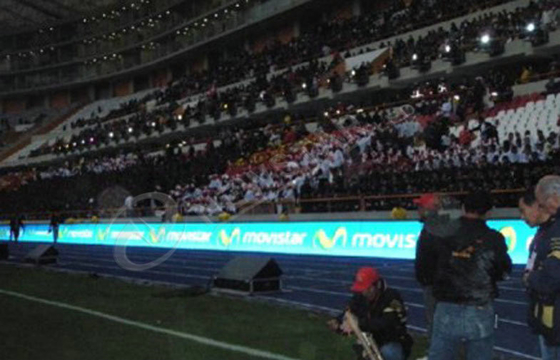

Stadium inside and outside such as football pitch, baseball, basketball etc

Specifications:

1. DIP Outdoor LED Display Technical Parameter

Model No.	NS-IR-DS-P20
Pixel Pitch	20mm
Module Size	320mm×160 mm
Module Resolution(Pixel)	16dots×8dots
Pixel Density	2500dots/m2
LED Type	DIP
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Static
Cabinet Size	1280×960×135mm
Cabinet Resolution	96dots×48dots
Brightness	≥6500 cd/m2
Contrast	≥ 4000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	15m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000W/m2
Average Power Consumption	350W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LED studio 10.0
Software	LINSN / Nova/ DB-STAR
Waterproof Level	IP65
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	320mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	20mm	Resolution (W*H)	16 dots*8 dots
Pixel Density	2500 dots/㎡	LED Type	DIP

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1280mm*960mm	Module Qty	18 pcs
Cabinet Resolution (W*H)	96 dots*48 dots	Cabinet Pixel	4608
Weight	60kg/ Cabinet	Area	1.23㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Waterproof test

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material
