High Definition P5 Permanent Led Video Screen Curved LED Display SMD3528 1R1G1B

I'm Online Chat Now
Certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
Thanks for checking the shipments, good that everything will be delivered today. thank you for your good service!

—— Samir from Netherlands

The display looks good so far! I only have the screen 1 showing but it is bright..

—— Craig Becker from USA

High Definition P5 Permanent Led Video Screen Curved LED Display SMD3528 1R1G1B

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Definition P5 Permanent Led Video Screen Curved LED Display SMD3528 1R1G1B Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: NEWSTAR
Certification: CE,ROHS
Model Number: NS-IR-DS-P5
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: 800USD/SQM based on 1-100SQM
Packaging Details: Wooden case package
Delivery Time: 30-35 business days after received down payment
Supply Ability: 1000sqm per month
Detailed Product Description
Cabinet Size: 640X640mm Or Customized Size Material: Iron Or Aluminum
LED: SMD3528 1R1G1B Module Size: 160X160mm
Minimum Viewing Distance: 4m Service: Back Or Front
IP Progress: IP31 Warranty: 2 Years
High Light:

flexible led video screen

,

indoor advertising led display

HD P5 permanent Indoor LED Video Wall 640X640mm Curved Back Service LED Display



Main Features



1. Curved or normal led display cabinet is available

2. Iron or Aluminum cabinet material

3. Front or back service is up to you

4. Customized led panel size





Application



Newstar high definition indoor LED screen enables to bring smooth and high quality pictures.It can be used for many situations like meeting room,cinema,airport,shopping mall,swimming pool,etc.Front Maintenance is available.





Module

High Definition P5 Permanent Led Video Screen Curved LED Display SMD3528 1R1G1B 0

Technical Data



Model No. NS-IR-DS-P5
Pixel Pitch 5mm
Pixel Density/M2 40,000
LED Configuration 1R1G1B SMD3528
Module Size 160X160mm
Module Resolution 32X32dot
Cabinet Size 640X640mm
Cabinet Resolution 128X128dot
Minimum Viewing Distance 4m
Driving Mode 1/16
Refresh Rate >1000Hz
Brightnes >1800nits
Power Consumption 135W/Panel
Gray level(colors) 16.7billion
Viewing Angle(H/V) 140°/140º
Lifespan 100,000hrs
Operating Temperature -20℃–+60℃
IP Rating IP31
Control System Novastar or Linsn

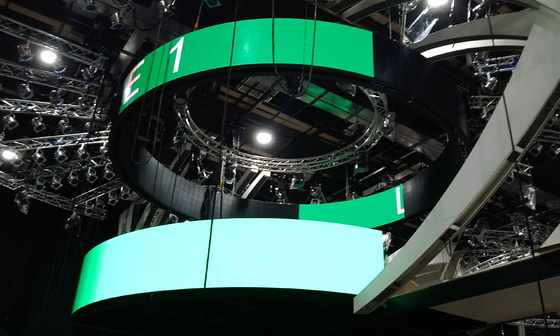

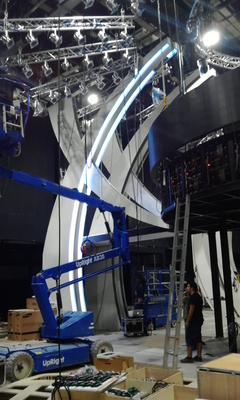

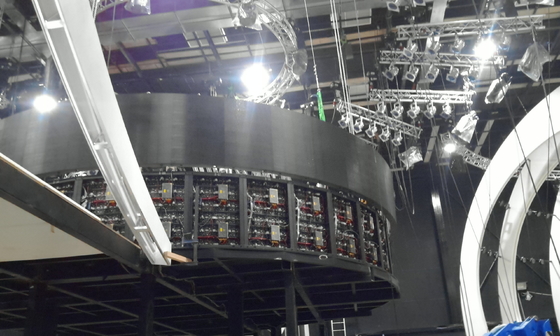

Project Reference



 High Definition P5 Permanent Led Video Screen Curved LED Display SMD3528 1R1G1B 1



Indoor 2.5mm,3mm,4mm,6mm,7.62mm,8mm,10mm is available.
