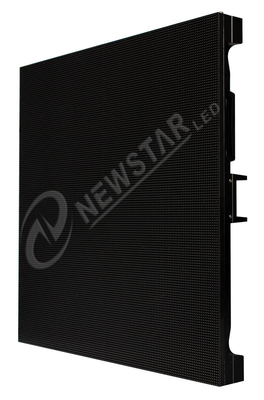

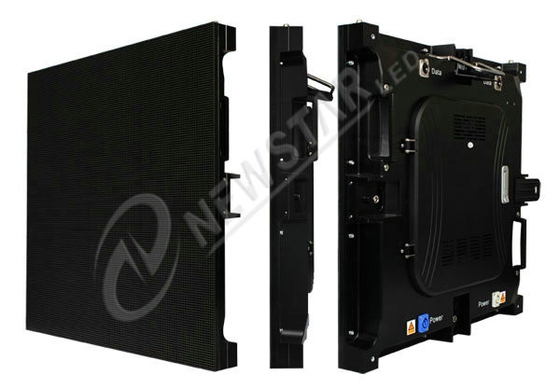

Light Weight Rental P4mm Full Color 1R1G1B Indoor LED Video Wall 144X144dots

Large Image : Light Weight Rental P4mm Full Color 1R1G1B Indoor LED Video Wall 144X144dots Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	NEWSTAR
Certification:	CE,ROHS
Model Number:	LS4

Payment & Shipping Terms:

Minimum Order Quantity:	10sqm
Price:	1050USD based on 1-100sqm
Packaging Details:	Flight case :960765835 mm (8 in 1)
Delivery Time:	20-25 business days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 sqm per month

Contact Now

Detailed Product Description

Cabinet Dimension:	576x576MM	Module Size:	288*288MM
Material:	Die-Cast Aluminum	LED Type:	Full Color 1R1G1B
LED Configuration:	SMD2020	Back Cover Color:	Black,yellow,blue Is Available
IP Ingress:	IP31	Warranty:	2 Years
High Light:	flexible led video screen , indoor advertising led display

4mm HD Light Weight Rental Indoor LED Video Wall 576 X 576mm Aluminum Die Casting

Main Features

high precision,lightweight,ultra thin and die casting aluminum cabinet.

excellent contrast and image quality.

Robust structure and high quality materials allow LED screen to have amzing durability

Light Weight Rental P4mm Full Color 1R1G1B Indoor LED Video Wall 144X144dots 0

Technical Specification

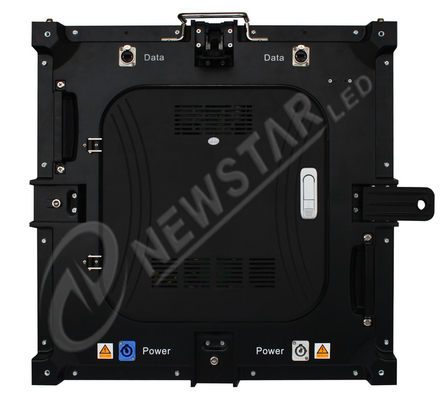

Cabinet Parameter

Cabinet Size	576X576mm
Cabinet Material	Die Cast Aluminum
Cabinet Weight	9 kg
Cabinet Resolution	144X144dots
Cabinet Protection	IP31

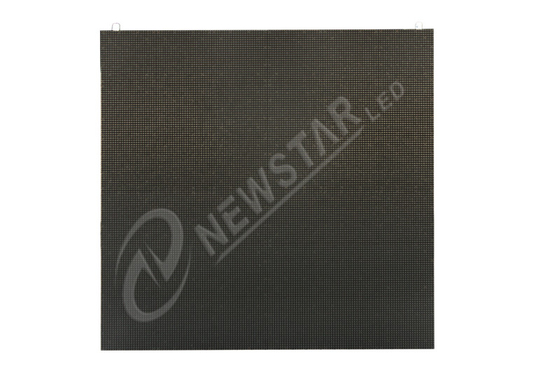

Module Parameter

Pixel Pitch	4mm
Pixel Configuration	1R1G1B 3 in 1
LED type	SMD 2020
Module size	288*288MM
Module resolution	72X72dots

Screen Parameter

Pixel Pitch	4mm
Driving Mode	1/18
Refresh Rate	>2000Hz
Brightness	>1200cd/m²
Power Consumption	Avg:210W/Panel
Grayscale	65536level
Viewing Angle(H/V)	140º/140º
Life span	100,000 hours at 50% brightness
IP Rating	IP31
Warranty	2 years
