P8 Outdoor Advertising LED Display Seamless , Rental Visual large led screens
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Panel Dimension: | 640*640mm | Panel Weight: | 28.6lbs |
|---|---|---|---|
| Module Size: | 320*160mm | Tube Chip Color: | Full Color |
| LED Configuration: | 1R1G1B(3535) | Display Function: | Video |
| Useage: | Outdoor | Warranty: | 2 Years |
| High Light: | outdoor led display boards,outdoor advertising led screen |
||
P8 Outdoor Advertising LED Display Seamless , Rental Visual large led screens
Product Features
- Aluminum die-casting structure was adopted into the cabinet,this high precision processing technology makes the panel more lighter,flatter.
- No fan,no noise.High heat dissipation as the die-casting alluminum body.
- Ultra thin only 75mm thickness and ultra light makes it convenient for your outdoor rental stage event.
- Easy to set-up & dismantle will save much time and your valuable space during your events.
- SMD 3 in 1(3535) are taken into design,delivering super high brightness pictures,videos.
- Excellent waterproof IP65 Rating and super brightness,no need worrying about the rainy weather or working against direct sunlight.

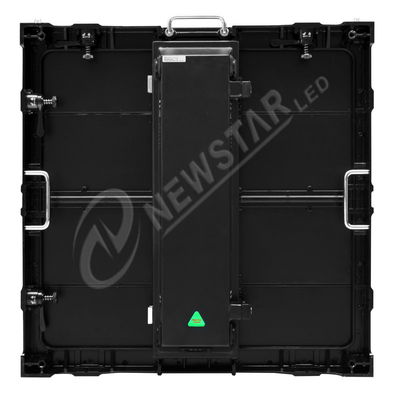

Details of Cabinet
Technical Specifications
| Model Number | KS8 |
| Pixel Pitch | 8mm |
| Pixel Density/m2 | 15625dots |
| Module Size | 320*160mm |
| Module Resolution | 40*20dots |
| Panel Dimension | 640*640*75mm |
| Panel Resolution | 80*80dots |
| Panel Weight | 28.6lbs |
| Refresh Rate | 2000Hz |
| LED Configuration | 1R1G1B SMD3535 |
| Brightness | 7000cd/m2 |
| Power consumption | Avg:400W / Panel |
| Grayscale | 65536level |
| Viewing Angle(H/W0 | 140º / 140º |
| Lifespan | 100,000hours at 50%brightness |
| Operating Temperature | -40centigree-+60centigree |
| IP Rating | IP65 |
| Certifications | CE,ROHS,ETL |
| Warranty | 2 years |
Cabinet Installation Diagram
Application
Newstar Kingkong Series are featured by robust,easy to set-up and dismantle.It is a fantastic choice for outdoor usage.The following are two projects from our cusotmer image.The first is
to introduce the beautiful scene to the visitor via our screen.The second project is a public plaza where installed our screen to broadcast community activity.
Package & Shipping
This flight case can not only insure the safety of the goods during sea,air,railway transportation,but also more convenient for your outdoor events.
Who we are?
Eastblished in 2008,we are a full color LED screen manufacturing specialist in shenzhen,China.
What we have?
Over 5000sq.m factory area,hundreds of employees,many high-tech machines to composite complete production lines,experienced R&D team,etc.
What we offer?
Our products cover indoor,outdoor,curtain and curved LED screens.Besides,customized solution is available.
Certifications
Any more details,we can talk on skype,whatsup.
Skype:kevinsung405_1
Whatsup:008613530871530
NEWSTAR is ready to be your reliable partner,are you ready?
