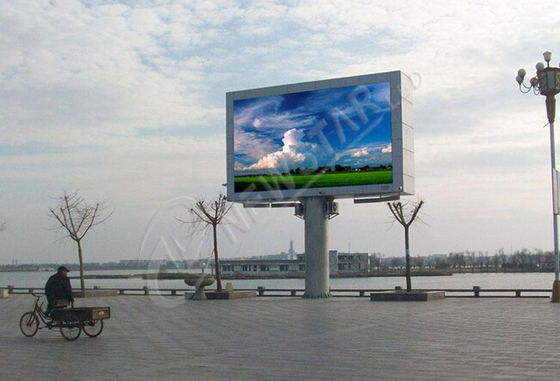

Ultra Thin P12.5 Outdoor Advertising LED Display Billboard , Rental Led Screen For Events
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | outdoor led advertising signs,outdoor advertising led screen |
||
|---|---|---|---|
Ultra Thin P12.5 Outdoor Advertising LED Display Billboard , Rental Led Screen For Events
Quick Detail:
1. High brightness: more than 6,000cd/㎡
2. Lightweight :< 12.5KG/panel. Ultra thin: 95mm thickness
3. Waterproof Level: IP65(Front Side), IP54 (Back Side)
4. CE,CCC,RoHS,UL,ISO9001
5. Cabinet connection angle can be adjusted by -15 degree to +15 degree
6. Made by high quality aluminum material
Description:
1. High brightness & Waterproof
Brightness reaches 6,000nits, Waterproof IP65. It is good for indoor and outdoor use.
2. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 12.5 KG. It makes installation job and
delivery more comfortable and convenient. 95 mm thickness saves not only space for delivery but also
installation.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows arc shape available.
4. Fast Lock System & No Fan Design
Fast lock system makes installation job much easier: an average worker can finish 60 panels within one
hour. Natural cool system design and good heat dissipation.
5. Rental & Fixed Installation Use
With above features, it is very suitable for advertising and rental usage.
Applications:
Rental, Advertising, Stage, Events, Show, Exhibition, Entertainment, Concerts
Specifications:
1. WS-12 Technical Parameter
|
Model No. |
WS-12 |
|
Pixel Pitch |
12.5mm |
|
Module Size |
500mm*100mm |
|
Module Resolution (W*H) |
40 dots*8 dots |
|
Pixel Density |
6,400 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/2 Duty Constant Current |
|
Cabinet Size |
500 ×500 ×95mm |
|
Cabinet Resolution |
40dots × 80dots |
|
Brightness |
≥ 6,000cd/㎡ |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16,777,216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1,000W/m2 |
|
Average Power Consumption |
300 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+60℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side) |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
2. 12.5mm LED Curtain Module
|
Module Size (W*H) |
500mm*100mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
12.5mm |
Resolution (W*H) |
40dots*8 dots |
|
Pixel Density |
6,400dots/㎡ |
LED Type |
SMD 3535 |
3. 12.5mm LED Curtain Cabinet
|
Cabinet Size (W*H) |
500mm*500mm*95mm |
Module Qty |
5 pcs |
|
Cabinet Resolution (W*H) |
40 dots *80dots |
Cabinet Pixel |
3,200 |
|
Weight |
12.5kg/ Cabinet |
Area |
0.5㎡ |
|
Average Power Consumption |
300w/㎡ |
Max Consumption |
1,000 W/m2 |
4. Methods for Quality Assurance
a.Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case or Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like Neutrik flight connector, MBI IC etc.
