SMD 3528 Indoor P10.417 Transparent LED Screen display for Exhibition

Large Image : SMD 3528 Indoor P10.417 Transparent LED Screen display for Exhibition Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	WS-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 sqm.
Price:	US $1,000-2,200 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	20-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

High Light:

transparent led display

transparent display screen

SMD 3528 Indoor P10.417 Transparent LED Screen display for Exhibition

Quick Detail:

1. Lightweight :< 8KG/panel. Ultra thin: 95mm thickness

2. High brightness: >1,800cd/㎡

3. CE,CCC,RoHS,UL,ISO9001

4. Made by high quality aluminum material

5. Cabinet connection angle can be adjusted by -15 degree to +15 degree

Description:

1. High brightness

Brightness reaches 1,800nits, It is perfect to be used for indoor.

2. Light Weigh & Ultra Thin

Made by high quality aluminum material, one cabinet only weights 8 KG. It makes installation job and

delivery more comfortable and convenient. 95 mm thickness saves not only space for delivery but also

installation.

3. Angle Adjustment

Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you shape arc

shapes.

4. Fast Lock System & No Fan Design

Easy to install and dismantle: an average worker can finish 70 panels per hour. Natural cool system design and good heat dissipation.

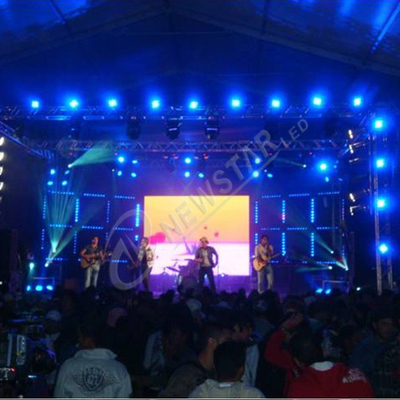

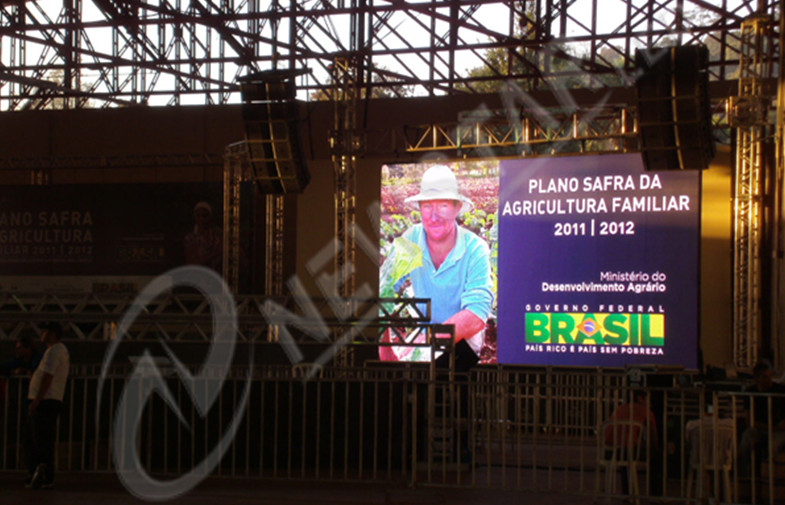

Applications:

Events, Rental, Show, Exhibition, Stage, Entertainment, Concerts

Specifications:

1. WS-10 Technical Parameter

Model No.	WS-10
Pixel Pitch	10.417mm
Module Size	500mm*83.3mm
Module Resolution (W*H)	48 dots*8 dots
Pixel Density	9,216 dots/ ㎡
LED Type	SMD 3528
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	500 ×500 ×95mm
Cabinet Resolution	48dots ×48dots
Brightness	≥ 1,800cd/㎡
Contrast	≥ 4000:1
Viewing Angle	140°(Horizontal )/140°(Vertical )
Best Viewing Distance	7m-300m
Grey Scale	10bits/1024levels
Color Capability	16,777,216
Color Temperature	5000-9300K
Maximum Power Consumption	1,000 W/㎡
Average Power Consumption	300 W/㎡
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	-40~+60℃
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	LINSN / NOVA / DB-STAR
Software	LED studio 10.0
Installation	hung and stand
Out of Control Rate	0.01 %

2. 10.417mm LED Curtain Module

Module Size (W*H)	500mm*83.3mm	Pixel Configuration	1R1G1B
Pixel Pitch	10.417mm	Resolution (W*H)	48dots*8 dots
Pixel Density	9,216 dots/㎡	LED Type	SMD 3528

3. 10.417mm LED Curtain Cabinet

Cabinet Size (W*H)	500mm 500mm 95mm	Module Qty	6 pcs
Cabinet Resolution (W*H)	48 dots*48dots	Cabinet Pixel	2,304
Weight	8kg/ Cabinet	Area	0.25㎡
Average Power Consumption	300w/㎡	Cabinet materail	Aluminum
