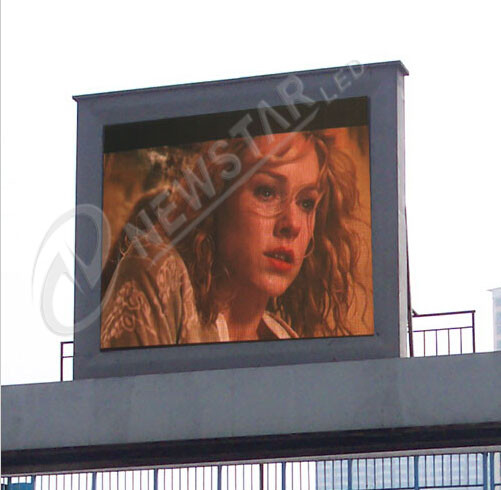

High Resolution curtain P10.417 Transparent LED Screen , Outdoor Aluminum LED display

large.img.alt
small.img.alt small.img.alt

Large Image :  High Resolution curtain P10.417 Transparent LED Screen , Outdoor Aluminum LED display Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: WS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,200 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 20-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Square Meters per Month
Detailed Product Description
High Light:

transparent screen display

,

transparent display screen



High Resolution curtain P10.417 Transparent LED Screen, Outdoor Aluminum LED display





Quick Detail:



1. Lightweight :< 8KG/panel. Ultra thin: 95mm thickness

2. Waterproof Level: IP65(Front Side), IP54 (Back Side)

3. High brightness: > 6,000cd/㎡

4. CE,CCC,RoHS,UL,ISO9001

5. Made by high quality aluminum material

6. Cabinet connection angle can be adjusted by -15 degree to +15 degree





Description:



1. Light Weigh & Ultra Thin

Made by high quality aluminum material, one cabinet only weights 8 KG. It makes installation job and

delivery more comfortable and convenient. 95 mm thickness saves not only space for delivery but also

installation.



2. High brightness & Waterproof

Brightness reaches 6,000nits, IP65. It is perfect to be used for both indoor and outdoor.



3. Angle Adjustment

Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you shape arc

shapes.



4. Fast Lock System & No Fan Design

Easy to install and dismantle: an average worker can finish 70 panels per hour. Natural cool system design and good heat dissipation.





Applications:

Events, Rental, Show, Exhibition, Stage, Entertainment, Concerts





Specifications:



1. WS-10 Technical Parameter

Model No.

WS-10

Pixel Pitch

10.417mm

Module Size

500mm*83.3mm

Module Resolution (W*H)

48 dots* 8 dots

Pixel Density

9,216 dots/ ㎡

LED Type

SMD 3535

Pixel Configuration

1R1G1B

Wavelength (R.G.B)

R:625±2nm G:525±2nm B:470±2nm

Drive Mode

Dynamic 1/4 Duty Constant Current

Cabinet Size

500× 500× 95mm

Cabinet Resolution

48dots × 48dots

Brightness

≥ 6,000cd/㎡

Contrast

≥ 2000:1

Viewing Angle

140°(Horizontal )/140°(Vertical )

Best Viewing Distance

7m-300m

Grey Scale

10bits/1024levels

Color Capability

16,777,216

Color Temperature

5000-9300K

Average Power Consumption

300 W/

Working Voltage

AC 220V/110V s±15% 50-60 HZ

Frame Frequency

60-85 HZ

Refresh Frequency

240 - 1000HZ

Brightness Correction

Pixel, Module, Cabinet Correction

Operating Temperature

-40~+60℃

Operating Humidity

10-90% RH

LED Lifespan

100,000 hours

MTBF

≥50,000 hours

Computer Operation System

Win 98/ Win XP/ Win 2000

Video Signal Input

RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite

Video Signal Output

RF, S-Video, RGB, RGBHV, YUV, YC etc.

Graphics Card

DVI Graphics Card

Control Distance

LINSN / NOVA / DB-STAR

Software

LED studio 10.0

Waterproof Level

IP65(Front Side), IP54 (Back Side)

Installation

hung and stand

Out of Control Rate

0.01 %



2. 10.417mm LED Curtain Module

Module Size (W*H)

500mm*83.3mm

Pixel Configuration

1R1G1B

Pixel Pitch

10.417mm

     Resolution (W*H)

48dots*8 dots

Pixel Density

9,216 dots/㎡

LED Type

SMD 3535



3.10.417mm LED Curtain Cabinet

Cabinet Size (W*H)

500mm*500mm*95mm

Module Qty

6 pcs

  Cabinet Resolution (W*H)

48dots* 48dots

Cabinet Pixel

2,304

Weight

8kg/ Cabinet

Area

0.25㎡

Average Power Consumption

300w/㎡

Max Consumption

1000 W/



4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level



 b.Vibration Testing

 Condition: 3-5 mins up and down in 5mm range



5. Factory Equipment



Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.



6. Package

Flight case or Fumigation-Free wooden case



7. Control System Connection



8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like Neutrik flight connector, MBI IC etc.
