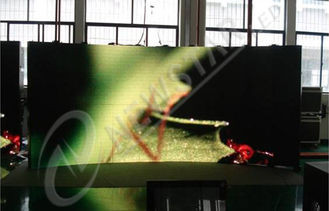

SMD3528 Flexible LED Display P10 , IP31 1R1G1B For Commercial Advertising
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Configuration: | 1R1G1B | Pixel Pitch: | 20mm |
|---|---|---|---|
| Protection Ratings: | IP31 | Use: | Indoor |
| High Light: | flexible led signs,flexible led display screen |
||
SMD3528 Flexible LED Display P10 , IP31 1R1G1B For Commercial Advertising
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Long lifespan up to 100,000 hours
3. Perfect quality and stability, 24/7 running
4. IP31 Ruggedness, all-weather qualified
5. High brightness: >1500cd/㎡
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
SMD3528 Flexible LED Display of P10 , IP31 1R1G1B for Commercial advertising
Description:
1. Arbitrarily exchanging the display or displaying synchronized video
2. Combining several global leading display board control technologies, such as grey level code
technology, brightness control technology, and nonlinearly rectifying technology
3. Modularization, high resolution and high contrast design, vivid dynamic display
4. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth
of lamp or neon
5. Economical maintenance and cost saving
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
160mm×160 mm |
|
Pixel Density |
10000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×960×135mm |
|
Cabinet Resolution |
96dots×96dots |
|
Brightness |
≥1500 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
8m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
825W/m2 |
|
Average Power Consumption |
280 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN OR DB-STAR |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Indoor LED Display Module
|
Dimensions (w x h) |
320mmx160mm |
Resolution (w x h) |
32 x 16 |
|
Pixel pitch |
10mm |
Pixel Density |
10000/㎡ |
|
Pixel Configration |
1R,1G,1B |
SMD3528 |
|
3. Indoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
960x960 |
Module Quantity |
18 |
|
Physical Resolution (w x h) |
96 x 96 |
Physical Pixels (total) |
9216 |
|
Weight/Panel (kgs) |
50 |
Material |
Cold rolled steel |
|
Average Power/sqm (watts) |
280 |
Max Power/sqm(watts) |
825 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
