Lightweight Indoor SMD2121 P4.5 Flexible LED Display 288*144mm Module
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Module Size: | 288*144mm | Pixel Configuration: | SMD2121 |
|---|---|---|---|
| Weight: | 0.5kg/pcs | Minimum Viewing Distance: | 5m |
| Brightness: | 1800nit | Application: | Indoor Arctic Shape |
| Warranty: | 2 Years | ||
| High Light: | flexible led signs,flexible led display screen |
||
P4.5 Soft Module Indoor High Brightness Flexible LED Display Creative led solution
Features of flexible led display:
1. Our flexible display is made of high quality smd leds integrated into a special rubber module, showing a nice and clear image, just like a regular video screen
2. With a refresh rate of more than 1920Hz, the image is flicker-free, suitable for professional applications.
3. Lightweight and small in volume: 20 sqm of soft flexible LED display can be packed in one flight case, which saves money on shipping charges.
4. Fast, easy and not costly installation: 20 sqm takes just need half an hour, which is time and labor saving.
5. It is flexible, making it suitable to all kind of irregular shapes, such as circles, columns, ellipses, triangles etc.
6. Very long life (over 10 years), maintenance negligible and easy.

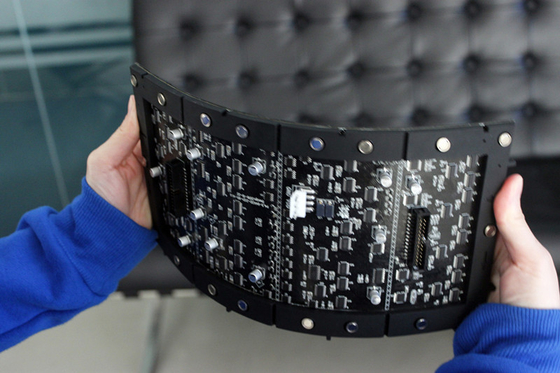

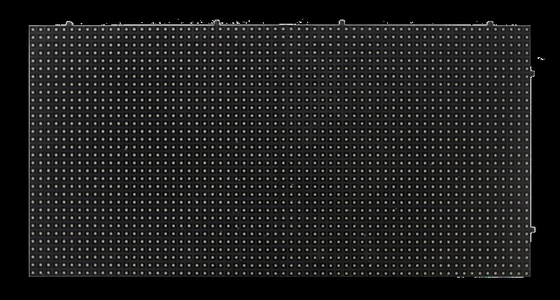

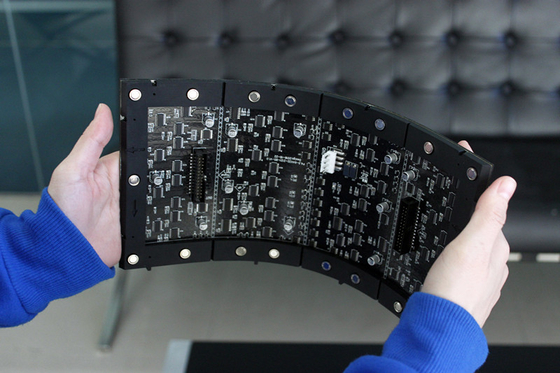

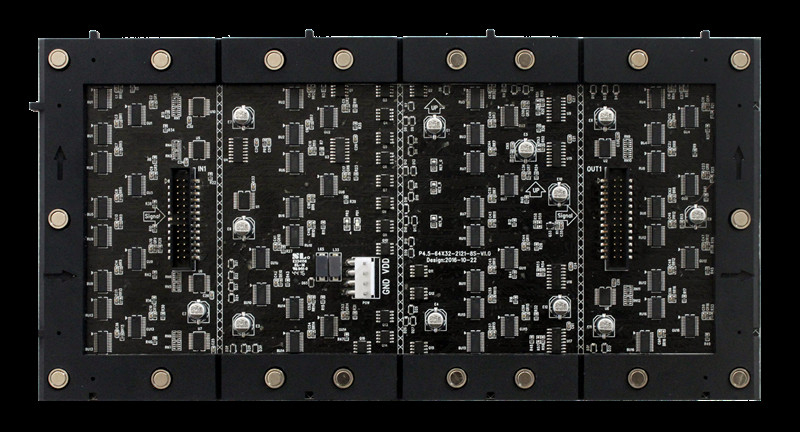

Product Image
Technical Data
| Parameter | Value | |||||
| Brightness | 1800 cd/㎡ | |||||
| Viewing Angle | Horizontal 170(+85/-85)deg. Vertical160(+80/-80)deg. | |||||
| Minimum Viewing Distance | 5meters | |||||
| Brightness Control | 256 level | |||||
| Gray scale | 65,536 level | |||||
| Refresh frequency | <1920 Hertz | |||||
| Driving mode | 1/8 Scan | |||||
| Input power frequency | 50 or 60 Hertz | |||||
| Input Voltage | 110 ～ 240 Volt | |||||
| Blind spot rate | ＜1/10,000 | |||||
| Lifetime at 50% brightness | 100,000 hours | |||||
| Ingress Protection | Indoor Usage | |||||
| Operating temperature | ﹣20 ～﹢50 ℃ | |||||
| Operating humidity | 10％ ～ 90％ | |||||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Operating system | Windows (7/2000/XP/Vista) | |||||
Application
Newstar's flexible led displays are widely used at Museum,Bar,Exhibition Events,TV Studio,Casino, Architecture Design,Stage Show,Shopping mall,Cometic,Retail shop etc as a window for showing and artistic decoration.
